4" Round LED Adjustable Pull-Down Insert

12.6W, 2700K - 3000K, 800 lm - 840 lm

ELCO Lighting's inserts are engineered with energy-efficient LED technology that produces even illumination with an incredible 93+ CRI. Designed to be used for New Construction, Remodel, and Retrofit applications, these inserts are rated for a life of 50,000 hours, and meet the Title 24 and Energy Star requirements. Suitable for IC and Non-IC housings manufactured by ELCO or others.

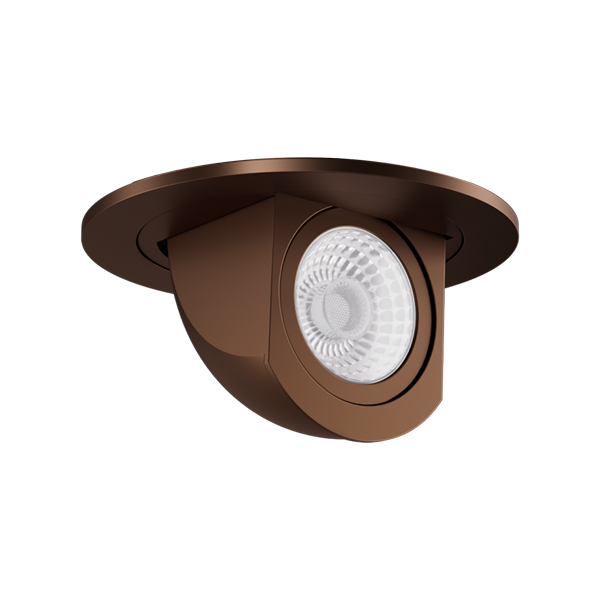

PRODUCT IMAGE

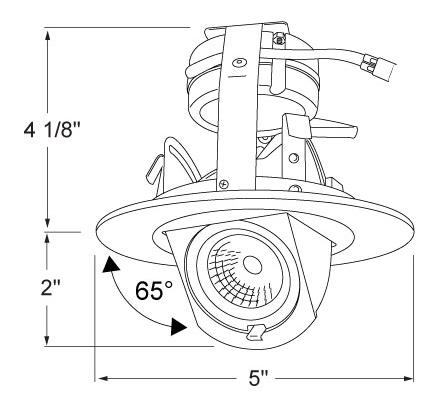

LINE ART
FINISHES / TYPES
White
Black
Bronze
Product Features
  •  Functions as downlight, wall wash or accent light.
  • Great for lighting up artwork and spotlighting.
  • Fits ELCO 4′′ Dedicated LED Recessed Housings.
  • Medium base to quick connect adapter included (PSA30)
  • Die-Cast construction provides lasting durability.
  • Interchangeable lenses available for multiple beam angles 38° installed, 20° (EP710C) and 60° (EP712C) Field Changeable optics sold separately.
  • Provides maximum adjustability of 65° tilt, 356° rotation.
  • Energy Star Certified
  • Title 24 JA8-2019 Compliant
  • Life Span of 50,000 hours L70.
Wattage
12.6W
Lumens
800 lm - 840 lm
Voltage
120V
Color Temp.
2700K - 3000K
Dimmable
Triac/ELV
Lamp Type
LED
Beam Angle
36°
CRI
93+
Damp Location
Listed

Resources & Downloads

Specifications
Catalog
IES File
Dimmer Compatibility
Other
Interchangeable Housings, LED Inserts and Trims Catalog (ELCAT1036)
LED Housings & Inserts Catalog (ELCAT1041)
EL49730 IES File
Dimmer Compatibility List

Product Number Builder

ITEM # SELECTED: 27B
[ ]
ELCO 4" Pull-Down LED Insert
EL497
Color Temp.
  • 27 2700K
Finish
  • B All Black
  • BZ All Bronze

Product SKU

Catalog Number Lamp type Wattage CCT Lumens Voltage Dimming Beam Angle Finish
EL49727B LED 12.6W 2700K 800 lm 120V Triac/ELV 36° All Black
EL49727BZ LED 12.6W 2700K 800 lm 120V Triac/ELV 36° All Bronze
EL49730BZ LED 12.6W 3000K 840 lm 120V Triac/ELV 36° All Bronze
EL49727W LED 12.6W 2700K 800 lm 120V Triac/ELV 36° All White
