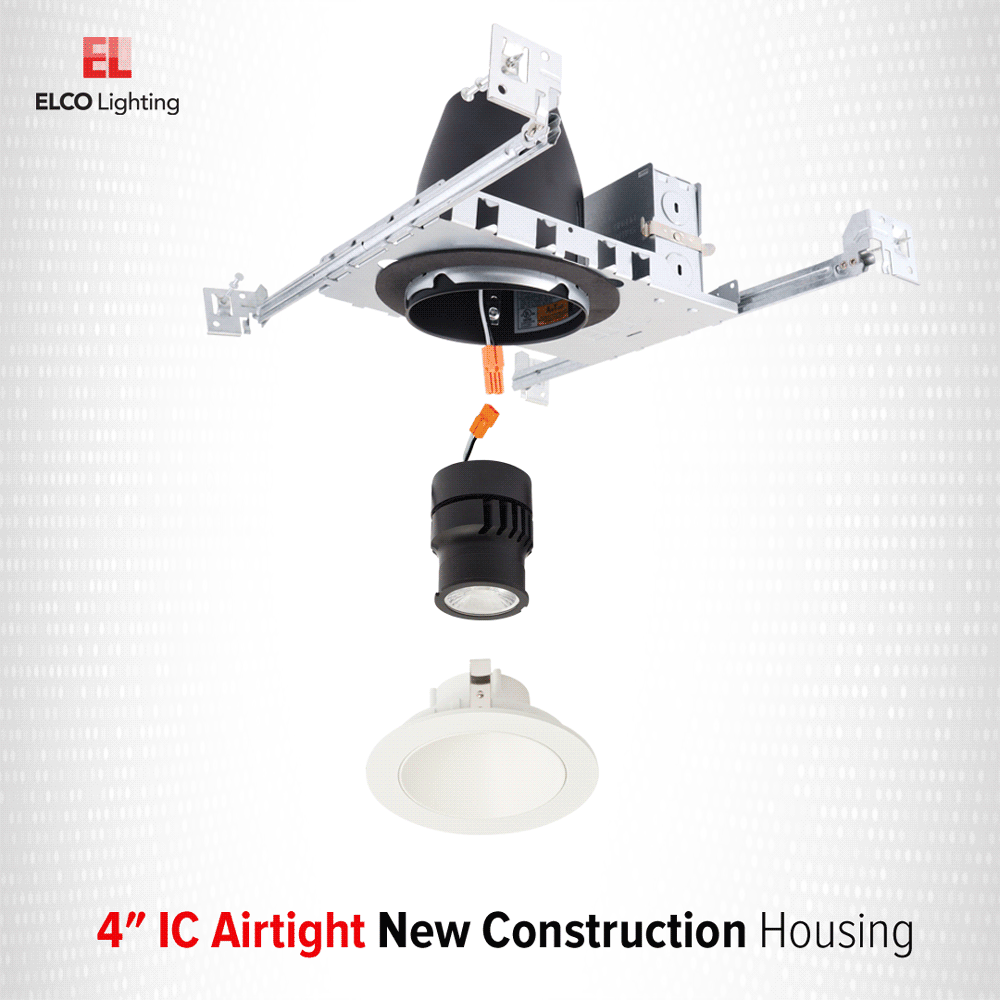

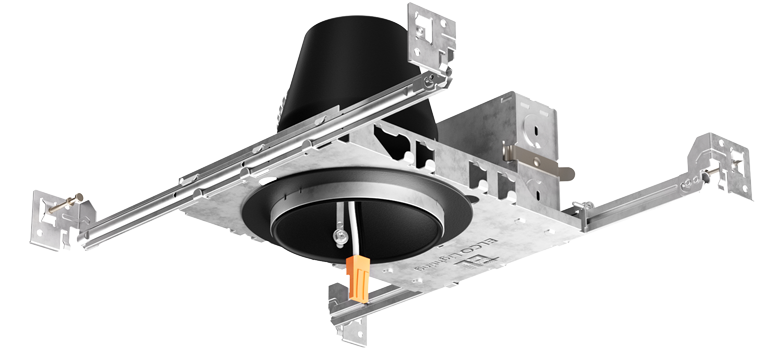

4" New Construction IC Airtight Housing
18W MAX,4" New construction dedicated LED housing. Compatible with 4" LED inserts, LED modules or PSA37 with MR16 trims. Can include step-down transformer.
PRODUCT IMAGE
FINISHES / TYPES

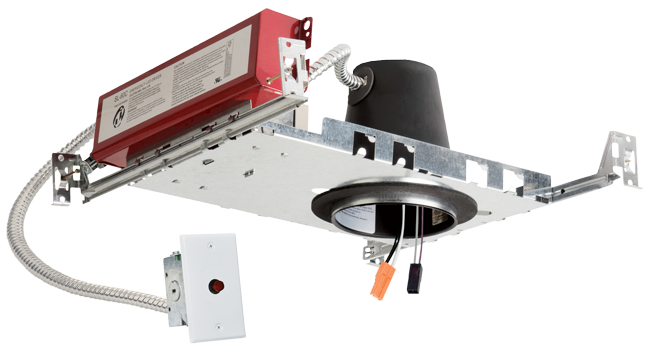

EL490ICA-EM5 Emergency Backup
LINE ART

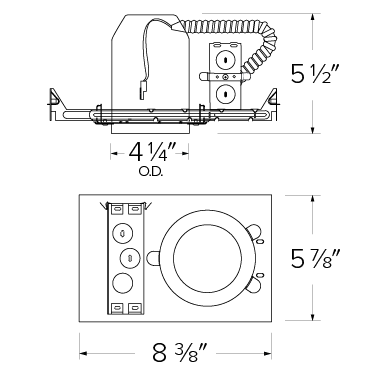

Dimensions
Product Features
- IC Airtight for direct contact with insulation, for use in IC and non-IC applications
- Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness
- Optional: 277V to 120V step-down transformer (EL490ICA-7 only)
- Meets Title 24 requirements.
- EM5 version complies with CEC Title 20 and Title 24
- Trims and inserts sold separately
- Compatible with Koto Module, LED inserts and PSA37
- With Quick Connect Terminal
Wattage
18W MAX
Voltage
120/277V or 277V
Wet Location
Listed with Shower Trims
Damp Location
Listed
Resources & Downloads
Product SKU
| Catalog Number | Description | Wattage | Voltage |
|---|---|---|---|
| EL490ICA | 18W MAX | 120/277V | |
| EL490ICA-7 | with 277V to 120V Step-Down Transformer | 18W MAX | 277V |
| EL490ICA-EM5 | Emergency Battery Backup | 18W MAX | 120/277V |
