LED Trident™ Track Fixture with 5-CCT Switch

12W - 20W, 2700K - 5000K, 800 lm - 1250 lm

To be used with 120V Single Circuit Track Only

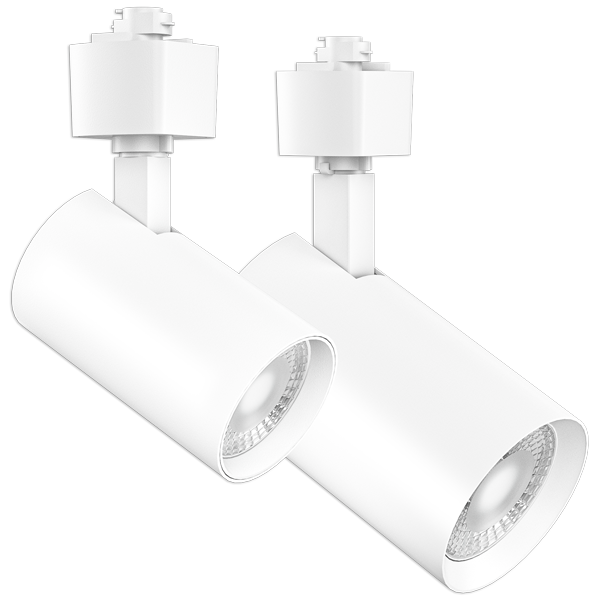

PRODUCT IMAGE
FINISHES / TYPES

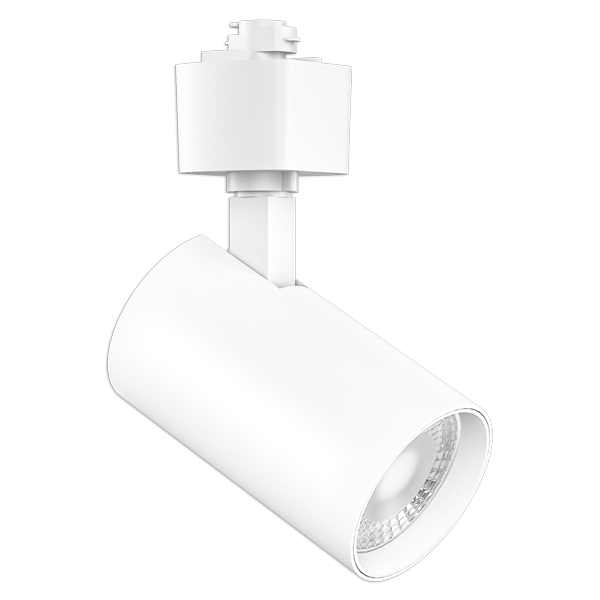

ET814CT5W - All White

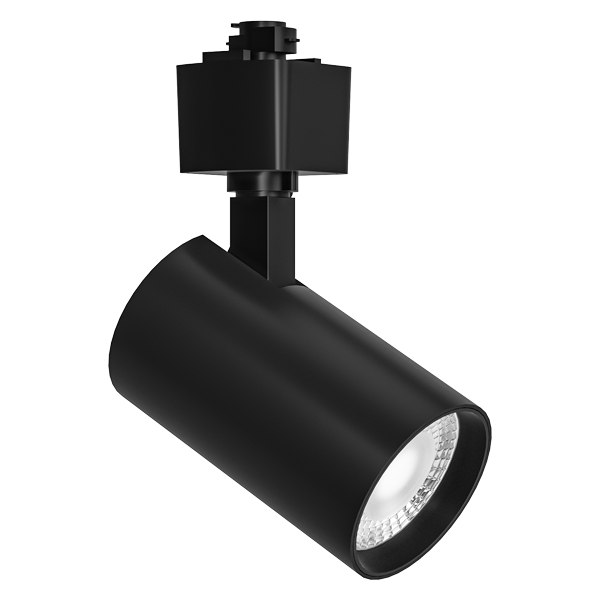

ET814CT5B - All Black

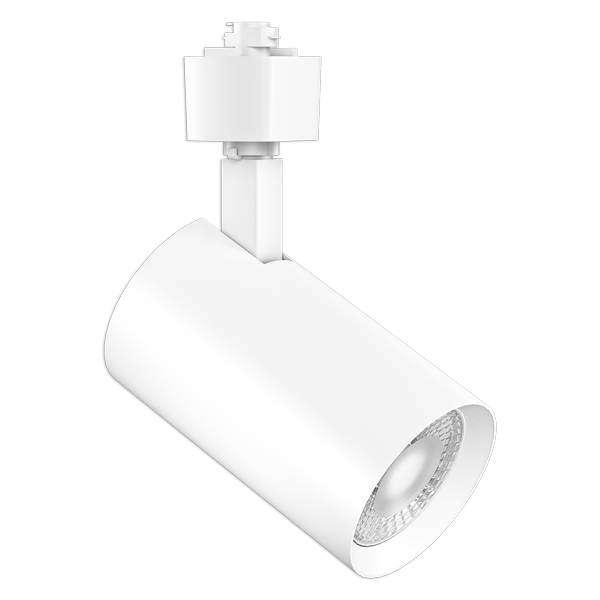

ET815CT5W - All White

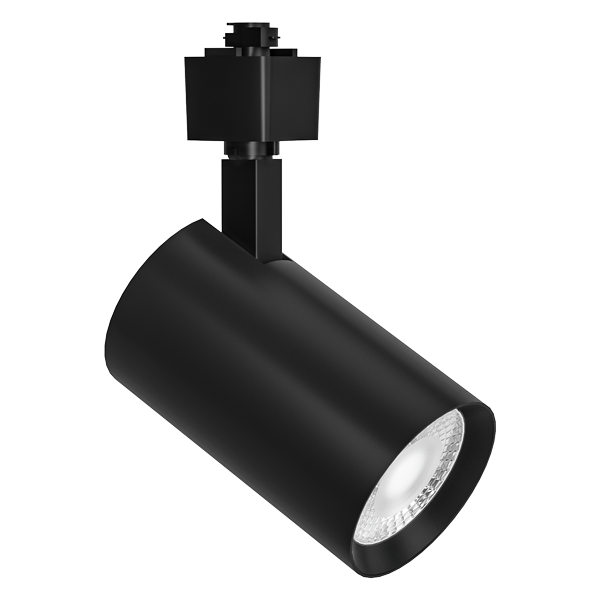

ET815CT5B - All Black
LINE ART
ET814CT5 Dimensions
ET815CT5 Dimensions
Product Features
  • Diecast aluminum fixture with integrated driver
  • 90° vertical adjustment, 358° rotation
  • Manual 5-CCT Switch available in fixture
  • Standard 36° beam angle.
  • Use with ELCO 120V Single Circuit Track
  • 50,000 hours life-span
  • This track head comes standard as H Style.
    J (Juno) and L (Lightolier) styles are available:
    For J style please order PJTHI (W/B) with the track head.
    For L style please order PLTHI (W/B) with the track head.
    Note these must be factory installed
Wattage
12W - 20W
Lumens
800 lm - 1250 lm
Voltage
120V
Color Temp.
2700K - 5000K
Lamp Type
LED
Beam Angle
36°

Resources & Downloads

Specifications
Catalog
Other
Flyer

Product Number Builder

ITEM # SELECTED: 814CT5W
[ ]
LED Trident™ Track Fixture
ET
Lumens
  • 814 800 lm (12W)
  • 815 1250 lm (20W)
Color Temp.
  • CT5 2700K - 5000K
Finish
  • W All White
  • B All Black

Product SKU

Catalog Number Lamp type Wattage CCT Lumens Voltage Beam Angle Finish
ET814CT5W LED 12W 2700K, 3000K, 3500K, 4000K, 5000K 800 lm 120V 36° All White
ET814CT5B LED 12W 2700K, 3000K, 3500K, 4000K, 5000K 800 lm 120V 36° All Black
ET815CT5W LED 20W 2700K, 3000K, 3500K, 4000K, 5000K 1250 lm 120V 36° All White
ET815CT5B LED 20W 2700K, 3000K, 3500K, 4000K, 5000K 1250 lm 120V 36° All Black
