LED Medium Wall Packs

45W - 70W, 4000K - 5000K, 4500 lm - 8100 lm

This medium-sized LED wall pack features a traditional design, but with energy efficient performance. Die-cast aluminum housing ensures long lasting functionality. High quality polycarbonate lens guards against vandalism and environmental contamination. Can be used for applications requiring 4,450 to 6,800 lumens.

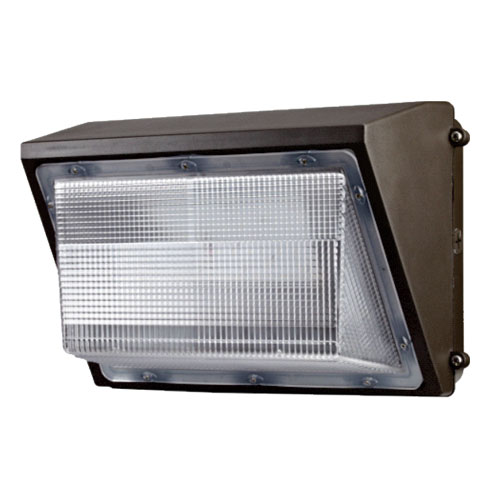

PRODUCT IMAGE

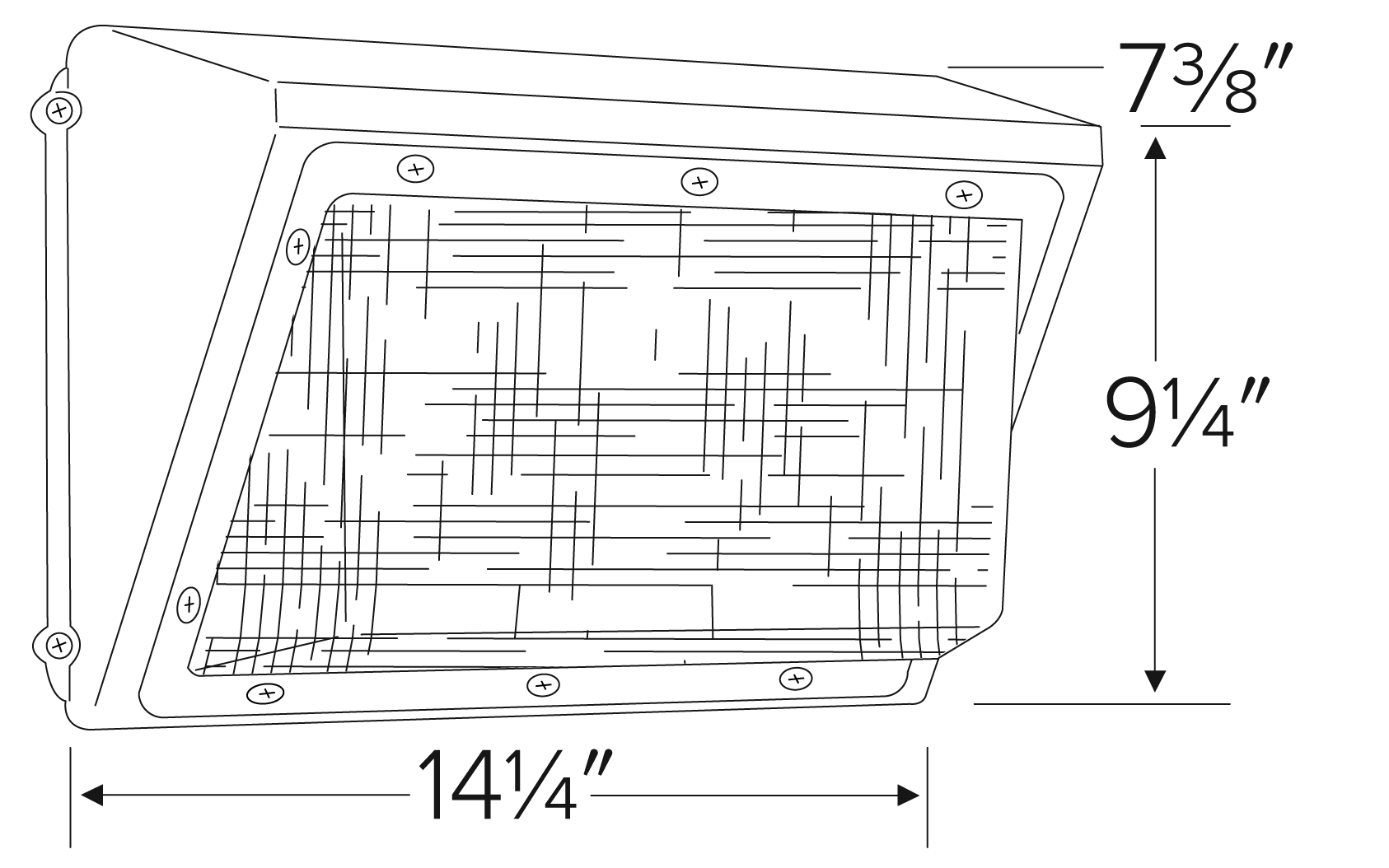

LINE ART
Dimensions
Product Features

Non-Dimmable or 0-10V Dimming.

Die-cast Aluminum Housing, polycarbonate lens.

Easily removed mounting knockouts and J-box pattern panel plate.

Standard input wattage: 45W (100W Metal Halide Equivalent), 70W (150W Metal Halide Equivalent), and 90W (200W Metal Halide Equivalent).

J-box or direct wall mount for surface conduit (back mount).

See compatible products for all accessories.



Wattage
45W - 70W
Lumens
4500 lm - 8100 lm
Voltage
120/277V
Color Temp.
4000K - 5000K
Dimmable
0-10V
Lamp Type
LED
CRI
80+
Power Factor
> 0.9
Wet Location
Listed
IP Rating
IP65

Resources & Downloads

Specifications
Catalog
IES File
Dimmer Compatibility
Installation Instruction
Other
Wall Packs and Flood Lights Catalog (ELCAT1039)
EWP45M40 IES File
EWP45M50 IES File
EWP70M40 IES File
EWP70M50 IES File

Product Number Builder

ITEM # SELECTED: 45M40
[ ]
Medium LED Wall Pack
EWP
Wattage
  • 45 45W
  • 70 70W
Size
  • M Medium
Color Temp
  • 40 4000K
  • 50 5000K
Optional
  • Non-Dimmable
  • D Dimmable

Product SKU

Catalog Number Lamp type Wattage CCT Lumens Voltage Dimming Finish Spec
EWP45M50 LED 45W 5000K 4500 lm 120/277V Dark Bronze
EWP70M50 LED 70W 5000K 8100 lm 120/277V Dark Bronze
EWP45M40D LED 45W 4000K 5200 lm 120/277V 0-10V Dark Bronze
EWP45M50D LED 45W 5000K 4500 lm 120/277V 0-10V Dark Bronze
EWP70M40D LED 70W 4000K 7950 lm 120/277V 0-10V Dark Bronze
EWP70M50D LED 70W 5000K 8100 lm 120/277V 0-10V Dark Bronze
