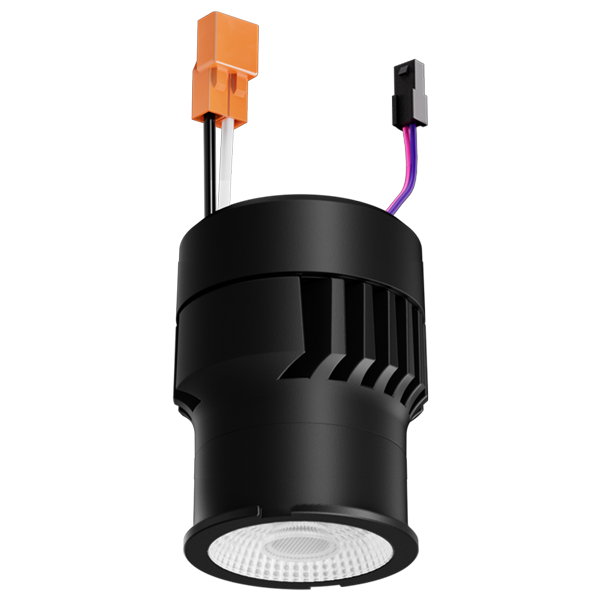

PRODUCT IMAGE

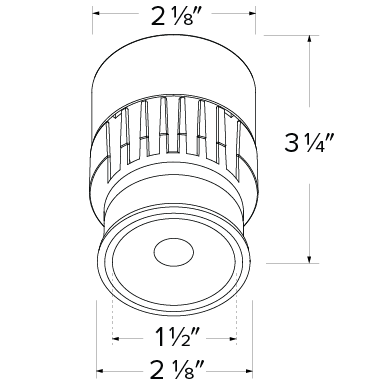

LINE ART
Product Features
- Integrated 120/277V DALI 2 controlled 0.1% dimmable driver
- Excellent color rendering 90+ CRI
- Dims from 4000K to 1800K
- Works in 2″, 3″, 4″, and 6″ ELCO 0-10V Housings with Koto™ twist-on trims
- Energy Star Compliant
- Title 24 JA8-2022 Compliant

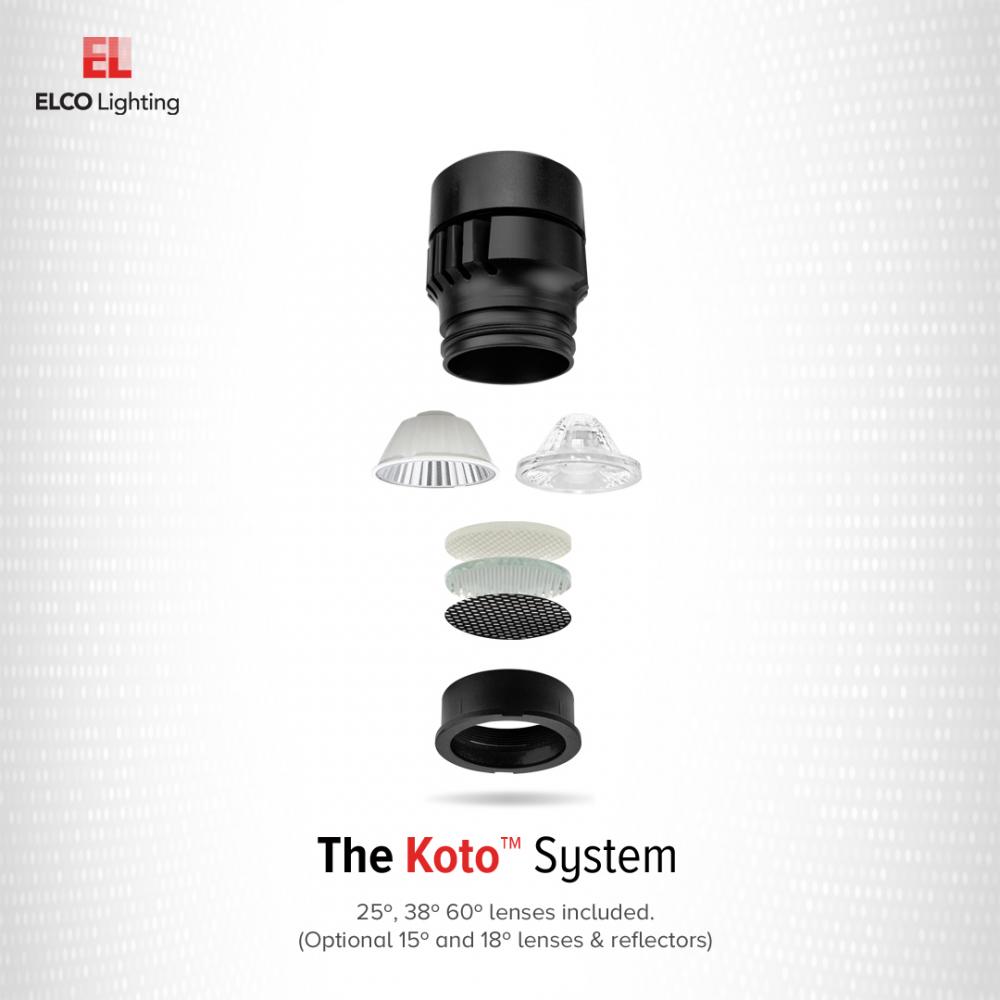

- Standard 38° Lens installed, 25° and 60° lens included with each module - Optional Lens: 18° (EP731C), 90° (EP739C)
- Optional: Louver (L45), Linear Lens (L46), Spread Lens (L47), Clear Lens (L48), Frosted Lens (L49), Snoot (L50), Color Shifter (L51), Blue Lens (L52), Pink Lens (L53), Single Asymmetric Lens (L54), Double Asymmetric Lens (L55)
-
Covered by U.S. PATENTS and Patents Pending
Wattage
11.5W
Lumens
880 lm
Voltage
120/277V
Color Temp.
1800K-4000K
Dimmable
DALI2 dimmable
Lamp Type
LED
CRI
90+
Wet Location
UL Listed w/Wet Location Trim
Damp Location
UL Listed
Resources & Downloads
Product Number Builder
ITEM # SELECTED:
08AL41TW
[ ]
DX Koto™ LED Module
ELKLumens
- 08 880 lm (11.5W)
Voltage
- AL 120-277V, DALI 2 0.1%
Color Temp.
- 41TW 1800K - 4000K 1
- 1 Tunable White Technology dims from 1800K to 4000K
Product SKU
| Catalog Number | Lamp type | Wattage | CCT | Lumens | Voltage | Dimming |
|---|---|---|---|---|---|---|
| ELK08AL41TW | LED | 11.5W | 1800K-4000K | 880 lm | 120/277V | DALI2 dimmable |
