Birch™ High Lumen LED Module (2000 lm-3000 lm)

21W / 29W / 36, 2700K - 5000K, 2000 lm / 2500 lm / 3000 lm

The beautifully designed die-cast module houses powerful and advanced LED technology to provide increased durability and outstanding illumination. Works with 4", 6" & 8" Birch Commercial Frames, Remodel, Retrofits and Twist-On Trims.

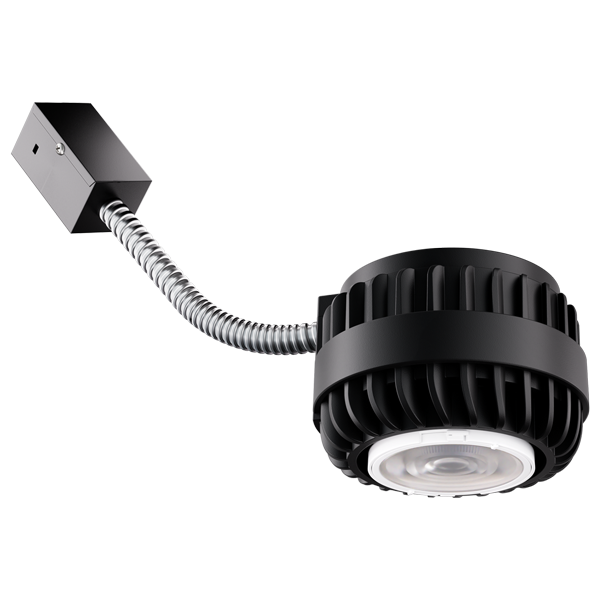

PRODUCT IMAGE

LINE ART

ELB30RCT5 - Dimensions

ELB30RCT5 Lumen & CCT Switch

Product Features

Non-IC for use in Non-IC applications
Select Lumen Output (2000 lm to 3000 lm) by using manual switch on module

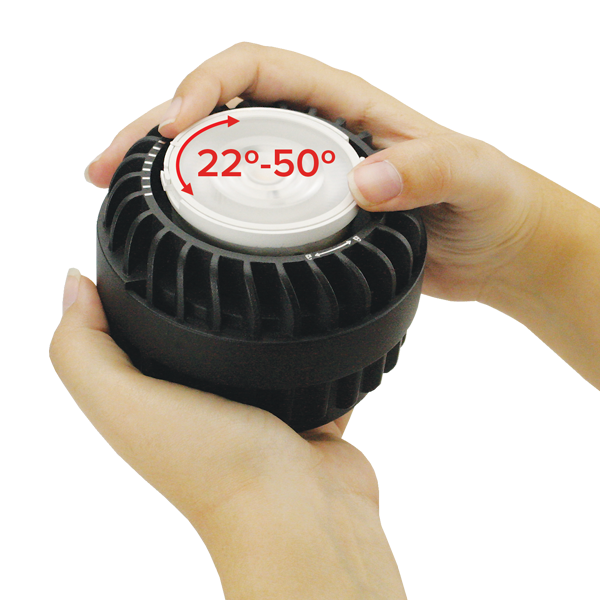

Adjustable Focus Beam Angle allows for manual beam angle adjustment from 22˚ to 50˚ range with the ease of a twist

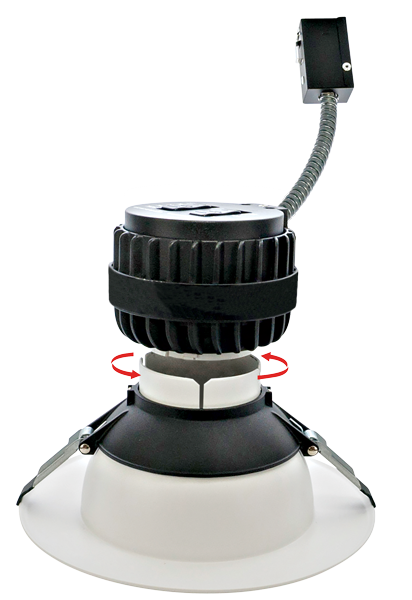

Featured Twist-On mechanism to easily lock module to any size trim
Encased Quick Connector for easy module installation
ELB30RCT5 works in 4", 6", and 8" Commercial Frames, Remodel and Retrofit applications
120/277V input with 0-10V dimming
Excellent color rendering 93+ CRI
Meets Energy Star Requirements
ETL listed for damp location
Life span of 50,000 hours L70
