6" Retrofit Kit Reflector LED Light Engine Trim with Driver

8.8W - 71.4W, 2700K - 4000K, Sunset, 850 lm - 6000 lm

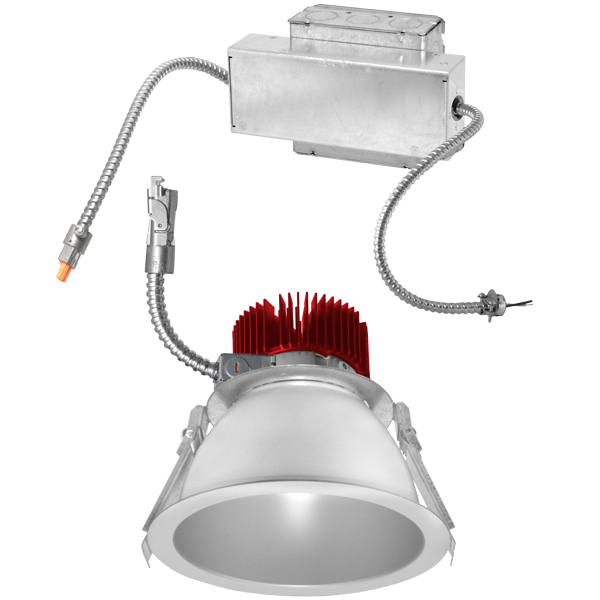

PRODUCT IMAGE
LINE ART
Light Engine
Product Features
  • Easy mounting brackets designed for retrofit applications
  •  Dimmable Triac/ELV and 0-10V.
  •  Includes retrofit driver and flex
  • Optional 90 minutes, 120/277 VAC, 60Hz Emergency Backup.
  •  USA Designed and Assembled.
Wattage
8.8W - 71.4W
Lumens
850 lm - 6000 lm
Color Temp.
2700K - 4000K, Sunset
Dimmable
Triac/ELV/0-10V/120/277V
Lamp Type
LED
Beam Angle
60°
Power Factor
≥0.9
Wet Location
Listed

Resources & Downloads

Specifications

Product Number Builder

ITEM # SELECTED: 0827DH
[ ]
Elco 6″ Retrofit Kit Light Engine with Driver
E610TF
Lumens
  • 08 850 lm
  • 12 1250 lm
  • 16 1600 lm
  • 20 2000 lm
  • 30 3000 lm
  • 40 4000 lm
  • 60 6000 lm 1
Color Temperature
  • 27 2700K 2
  • 30 3000K
  • 35 3500K
  • 40 4000K
  • SD Sunset 3
Dimming
  • D Triac/ELV/0-10V/120/277V
Finish
  • H All Haze (Semi-Specular)
  • W All White
  • B All Black
  • C All Chrome
  • HW Haze w/White Ring
Beam Angle
  • 60º lens
  • -F 38º lens 2
  • -N 24º lens 2
  • -S 15º lens 2
  • 1 Available in 0-10V dimming only
  • 2 Available for lumen packages up to 3000 lm only
  • 3 Sunset, Dim to Warm technology, automatically transitions from 3000K to 1800K when dimmed

Product SKU

Catalog Number Description Lamp type Wattage CCT Lumens Dimming Beam Angle Spec
E610TF0827DH, E610TF0827DW, E610TF0827DB, E610TF0827DC, E610TF0827DHW 6″ Retrofit Kit Reflector LED Light Engine Trim with Driver LED 8.8W 2700K 850 lm Triac/ELV/0-10V/120/277V 60°
E610TF0830DH, E610TF0830DW, E610TF0830DB, E610TF0830DC, E610TF0830DHW 6″ Retrofit Kit Reflector LED Light Engine Trim with Driver LED 8.8W 3000K 850 lm Triac/ELV/0-10V/120/277V 60°
E610TF0835DH, E610TF0835DW, E610TF0835DB, E610TF0835DC, E610TF0835DHW 6″ Retrofit Kit Reflector LED Light Engine Trim with Driver LED 8.8W 3500K 850 lm Triac/ELV/0-10V/120/277V 60°
E610TF0840DH, E610TF0840DW, E610TF0840DB, E610TF0840DC, E610TF0840DHW 6″ Retrofit Kit Reflector LED Light Engine Trim with Driver LED 8.8W 4000K 850 lm Triac/ELV/0-10V/120/277V 60°
E610TF1227DH, E610TF1227DW, E610TF1227DB, E610TF1227DC, E610TF1227DHW 6″ Retrofit Kit Reflector LED Light Engine Trim with Driver LED 12.8W 2700K 1250 lm Triac/ELV/0-10V/120/277V 60°
E610TF1230DH, E610TF1230DW, E610TF1230DB, E610TF1230DC, E610TF1230DHW 6″ Retrofit Kit Reflector LED Light Engine Trim with Driver LED 12.8W 3000K 1250 lm Triac/ELV/0-10V/120/277V 60°
E610TF1235DH, E610TF1235DW, E610TF1235DB, E610TF1235DC, E610TF1235DHW 6″ Retrofit Kit Reflector LED Light Engine Trim with Driver LED 12.8W 3500K 1250 lm Triac/ELV/0-10V/120/277V 60°
E610TF1240DH, E610TF1240DW, E610TF1240DB, E610TF1240DC, E610TF1240DHW 6″ Retrofit Kit Reflector LED Light Engine Trim with Driver LED 12.8W 4000K 1250 lm Triac/ELV/0-10V/120/277V 60°
E610TF12SDDH, E610TF12SDDW, E610TF12SDDB, E610TF12SDDC, E610TF12SDDHW 6″ Retrofit Kit Reflector LED Light Engine Trim with Driver LED 12.8W Sunset Asset 1 1250 lm Triac/ELV/0-10V/120/277V 60°
E610TF1627DH, E610TF1627DW, E610TF1627DB, E610TF1627DC, E610TF1627DHW 6″ Retrofit Kit Reflector LED Light Engine Trim with Driver LED 18W 2700K 1600 lm Triac/ELV/0-10V/120/277V 60°
E610TF1630DH, E610TF1630DW, E610TF1630DB, E610TF1630DC, E610TF1630DHW 6″ Retrofit Kit Reflector LED Light Engine Trim with Driver LED 18W 3000K 1600 lm Triac/ELV/0-10V/120/277V 60°
E610TF1635DH, E610TF1635DW, E610TF1635DB, E610TF1635DC, E610TF1635DHW 6″ Retrofit Kit Reflector LED Light Engine Trim with Driver LED 18W 3500K 1600 lm Triac/ELV/0-10V/120/277V 60°
E610TF1640DH, E610TF1640DW, E610TF1640DB, E610TF1640DC, E610TF1640DHW 6″ Retrofit Kit Reflector LED Light Engine Trim with Driver LED 18W 4000K 1600 lm Triac/ELV/0-10V/120/277V 60°
E610TF16SDDH, E610TF16SDDW, E610TF16SDDB, E610TF16SDDC, E610TF16SDDHW 6″ Retrofit Kit Reflector LED Light Engine Trim with Driver LED 18W Sunset Asset 1 1600 lm Triac/ELV/0-10V/120/277V 60°
E610TF2027DH, E610TF2027DW, E610TF2027DB, E610TF2027DC, E610TF2027DHW 6″ Retrofit Kit Reflector LED Light Engine Trim with Driver LED 21.6W 2700K 2000 lm Triac/ELV/0-10V/120/277V 60°
E610TF2030DH, E610TF2030DW, E610TF2030DB, E610TF2030DC, E610TF2030DHW 6″ Retrofit Kit Reflector LED Light Engine Trim with Driver LED 21.6W 3000K 2000 lm Triac/ELV/0-10V/120/277V 60°
E610TF2035DH, E610TF2035DW, E610TF2035DB, E610TF2035DC, E610TF2035DHW 6″ Retrofit Kit Reflector LED Light Engine Trim with Driver LED 21.6W 3500K 2000 lm Triac/ELV/0-10V/120/277V 60°
E610TF2040DH, E610TF2040DW, E610TF2040DB, E610TF2040DC, E610TF2040DHW 6″ Retrofit Kit Reflector LED Light Engine Trim with Driver LED 21.6W 4000K 2000 lm Triac/ELV/0-10V/120/277V 60°
E610TF20SDDH, E610TF20SDDW, E610TF20SDDB, E610TF20SDDC, E610TF20SDDHW 6″ Retrofit Kit Reflector LED Light Engine Trim with Driver LED 21.6W Sunset Asset 1 2000 lm Triac/ELV/0-10V/120/277V 60°
E610TF3027DH, E610TF3027DW, E610TF3027DB, E610TF3027DC, E610TF3027DHW 6″ Retrofit Kit Reflector LED Light Engine Trim with Driver LED 31W 2700K 3000 lm Triac/ELV/0-10V/120/277V 60°
E610TF3030DH, E610TF3030DW, E610TF3030DB, E610TF3030DC, E610TF3030DHW 6″ Retrofit Kit Reflector LED Light Engine Trim with Driver LED 31W 3000K 3000 lm Triac/ELV/0-10V/120/277V 60°
E610TF3035DH, E610TF3035DW, E610TF3035DB, E610TF3035DC, E610TF3035DHW 6″ Retrofit Kit Reflector LED Light Engine Trim with Driver LED 31W 3500K 3000 lm Triac/ELV/0-10V/120/277V 60°
E610TF3040DH, E610TF3040DW, E610TF3040DB, E610TF3040DC, E610TF3040DHW 6″ Retrofit Kit Reflector LED Light Engine Trim with Driver LED 31W 4000K 3000 lm Triac/ELV/0-10V/120/277V 60°
E610TF30SDDH, E610TF30SDDW, E610TF30SDDB, E610TF30SDDC, E610TF30SDDHW 6″ Retrofit Kit Reflector LED Light Engine Trim with Driver LED 31W Sunset Asset 1 3000 lm Triac/ELV/0-10V/120/277V 60°
E610TF4027DH, E610TF4027DW, E610TF4027DB, E610TF4027DC, E610TF4027DHW 6″ Retrofit Kit Reflector LED Light Engine Trim with Driver LED 36.8W 2700K 4000 lm Triac/ELV/0-10V/120/277V 60°
E610TF4030DH, E610TF4030DW, E610TF4030DB, E610TF4030DC, E610TF4030DHW 6″ Retrofit Kit Reflector LED Light Engine Trim with Driver LED 36.8W 3000K 4000 lm Triac/ELV/0-10V/120/277V
E610TF4035DH, E610TF4035DW, E610TF4035DB, E610TF4035DC, E610TF4035DHW 6″ Retrofit Kit Reflector LED Light Engine Trim with Driver LED 36.8W 3500K 4000 lm Triac/ELV/0-10V/120/277V 60°
E610TF4040DH, E610TF4040DW, E610TF4040DB, E610TF4040DC, E610TF4040DHW 6″ Retrofit Kit Reflector LED Light Engine Trim with Driver LED 36.8W 4000K 4000 lm Triac/ELV/0-10V/120/277V 60°
E610TF40SDDH, E610TF40SDDW, E610TF40SDDB, E610TF40SDDC, E610TF40SDDHW 6″ Retrofit Kit Reflector LED Light Engine Trim with Driver LED 36.8W Sunset Asset 1 4000 lm Triac/ELV/0-10V/120/277V 60°
E610TF6027DH, E610TF6027DW, E610TF6027DB, E610TF6027DC, E610TF6027DHW 6″ Retrofit Kit Reflector LED Light Engine Trim with Driver LED 71.4W 2700K 6000 lm Triac/ELV/0-10V/120/277V 60°
E610TF6030DH, E610TF6030DW, E610TF6030DB, E610TF6030DC, E610TF6030DHW 6″ Retrofit Kit Reflector LED Light Engine Trim with Driver LED 71.4W 3000K 6000 lm Triac/ELV/0-10V/120/277V 60°
E610TF6035DH, E610TF6035DW, E610TF6035DB, E610TF6035DC, E610TF6035DHW 6″ Retrofit Kit Reflector LED Light Engine Trim with Driver LED 71.4W 3500K 6000 lm Triac/ELV/0-10V/120/277V 60°
E610TF6040DH, E610TF6040DW, E610TF6040DB, E610TF6040DC, E610TF6040DHW 6″ Retrofit Kit Reflector LED Light Engine Trim with Driver LED 71.4W 4000K 6000 lm Triac/ELV/0-10V/120/277V 60°
