6″ Ply Sylo™ Pendant

14, 18, 24W - 15 MAX.W, 2700K - 5000K, 1000 lm - 2000 lm

This unique Ply Sylo™ LED Pendant gives you the options you are looking for. Engineered with energy-efficient LED technology and dimming options for your project.
PRODUCT IMAGE
FINISHES / TYPES
All White

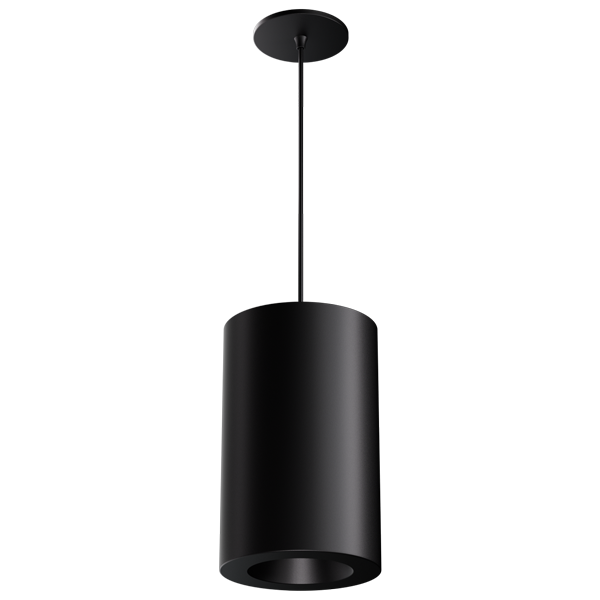

All Black

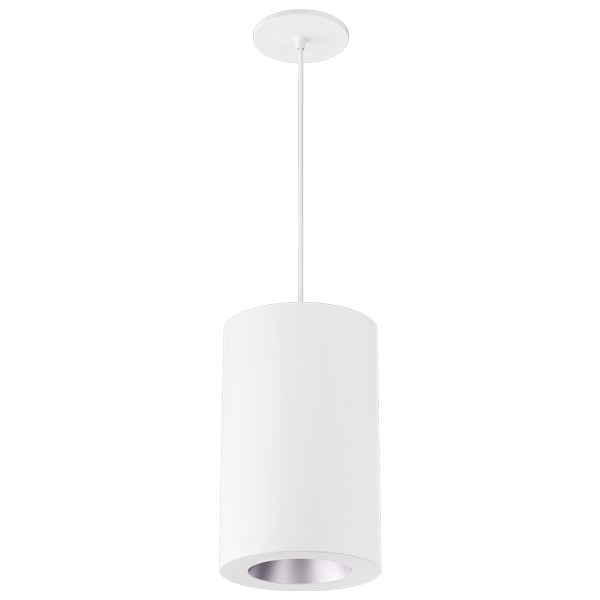

Haze with White Ring

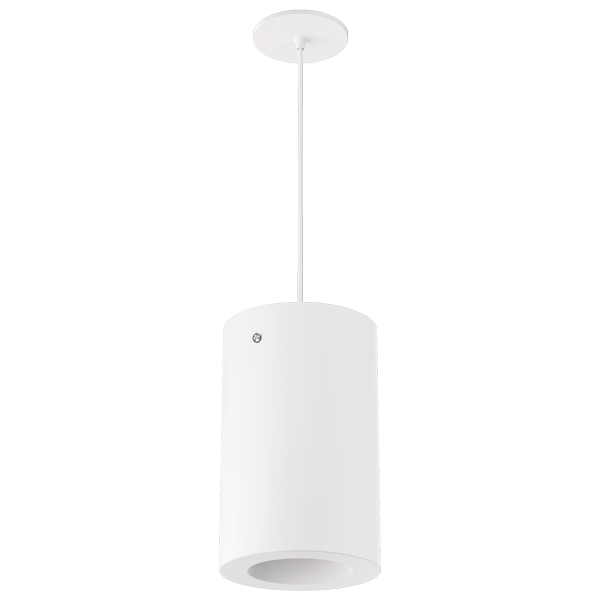

Integral EM Switch
LINE ART
Dimensions
Product Features
  • Modern Pendant Die-Cast aluminum fixture for easy maintenance  and upgrades
  • Integral EM option 15W Max, for over 15W use EJB4ICA-EM5 external EM and housing
  • Available with 120″ Field Cuttable Cable or Stems (12", 24", 36", 48", 60", 72" and 84")
  • Fits 3 ½″ and 4″ Octagon and Round Junction boxes

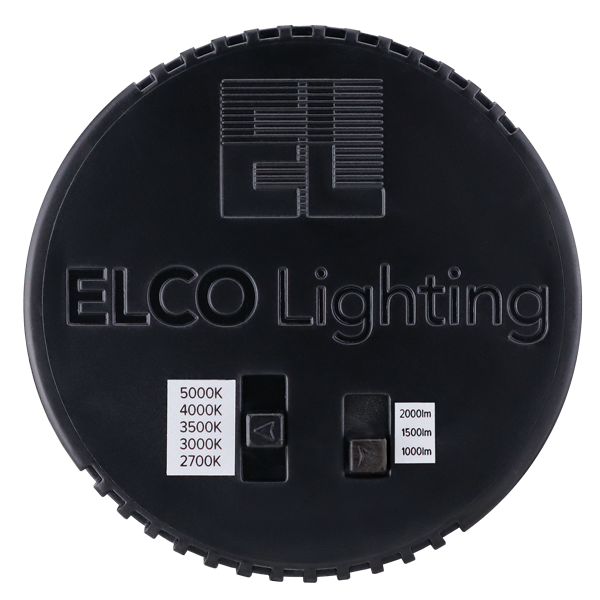

  • Manual switch to choose desired Color Temperature and Lumen Output
  • 120V Triac/ELV dimming or 120/277V 0-10V dimming options available
  • Soft white lens provides smooth lumen distribution and eliminates LED pixelation
  • 90+ CRI for extremely accurate color rendering
  • CA Title 24, ETL listed, ENERGY STAR, JA8-2022-E
  • Life span of 50,000 hours L70
Wattage
14, 18, 24W - 15 MAX.W
Lumens
1000 lm - 2000 lm
Voltage
120/277V or 120V

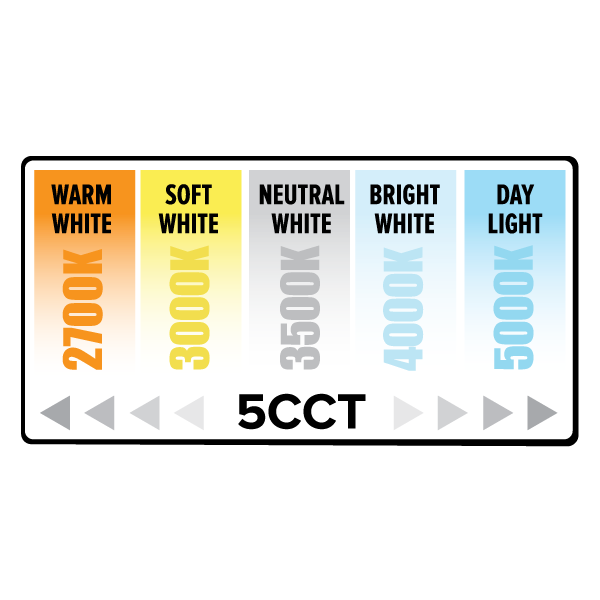

Color Temp.
2700K - 5000K
Dimmable
Triac/ELV or 0-10V
Lamp Type
LED
CRI
90+
Wet Location
Listed

Resources & Downloads

Specifications
IES File
IES File
Flyer

Product Number Builder

ITEM # SELECTED: 37L3CT5W
[ ]
6″ Ply Sylo™ Pendant
EPD6
Dimming
  • 37 120V, Triac/ELV 1
  • 85 120/277V, 0-10V 2
Lumen Output (Wattage)
  • L3 1000/1500/2000(14/18/24W) 3, 4
  • 10 1000 lumen (15W) 5, 6
Color Temp.
  • CT5 2700K-5000K 7
Color Finish
  • W All White
  • BB All Black 8
  • HW White with Haze Reflector
Length
  • 120" Cable Mount 9
  • -12 12" Stem 10
  • -24 24" Stem 10
  • -36 36" Stem 10
  • -48 48" Stem 10
  • -60 60" Stem 10
  • -72 72" Stem 10
  • -84 84" Stem 10
Optional
  • No Emergency Battery
  • EM Em. battery 15W MAX. 11
  • 1 Available as 120V, Triac/ELV
  • 2 Available as 120/277V, 0-10V/Triac/ELV
  • 3 Manual lumen switch located on module
  • 4 Lumen Switch: 1000/1500/2000 lm
  • 5 Available as 120V, Triac/ELV
  • 6 Available in All White (W) and White/Haze (HW) only
  • 7 Manual CCT switch located on module
  • 8 All Black (BB) only available in L3 only
  • 9 120″ field cuttable cable
  • 10 Stem is not field cuttable
  • 11 Fixture becomes 120V only

Product SKU

Catalog Number Description Lamp type Wattage CCT Lumens Voltage Dimming Finish Spec
EPD637L3CT5W LED 14, 18, 24 2700K, 3000K, 3500K, 4000K, 5000K 1000, 1500, 2000 lm 120V Triac/ELV All White
EPD637L3CT5BB LED 14, 18, 24 2700K, 3000K, 3500K, 4000K, 5000K 1000, 1500, 2000 lm 120V Triac/ELV All Black
EPD637L3CT5HW LED 14, 18, 24 2700K, 3000K, 3500K, 4000K, 5000K 1000, 1500, 2000 lm 120V Triac/ELV Haze with White Ring
EPD63710CT5W LED 15W 2700K, 3000K, 3500K, 4000K, 5000K 1000 lm 120V Triac/ELV All White
EPD63710CT5HW LED 15W 2700K, 3000K, 3500K, 4000K, 5000K 1000 lm 120V Triac/ELV Haze with White Ring
EPD685L3CT5W LED 14, 18, 24 2700K, 3000K, 3500K, 4000K, 5000K 1000, 1500, 2000 lm 120/277V 0-10V All White
EPD685L3CT5BB LED 14, 18, 24 2700K, 3000K, 3500K, 4000K, 5000K 1000, 1500, 2000 lm 120/277V 0-10V All Black
EPD685L3CT5HW LED 14, 18, 24 2700K, 3000K, 3500K, 4000K, 5000K 1000, 1500, 2000 lm 120/277V 0-10V Haze with White Ring
EPD63710CT5WEM Emergency Battery Backup LED 15 MAX. 2700K, 3000K, 3500K, 4000K, 5000K 1000 lm 120V Triac/ELV All White
EPD63710CT5HWEM Emergency Battery Backup LED 15 MAX. 2700K, 3000K, 3500K, 4000K, 5000K 1000 lm 120V Triac/ELV Haze with White Ring
