6" LED High Lumen Round Reflector Insert with 5-CCT Switch & 5-Lumen Switch

12W, 16W, 19W, 25WW - 12W, 16W, 19W, 25W, 32W, 2700K - 5000K, 1000 lm - 2500 lm

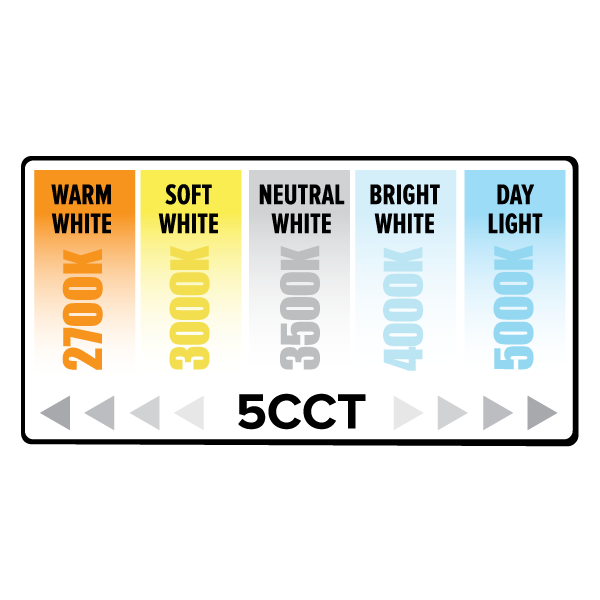

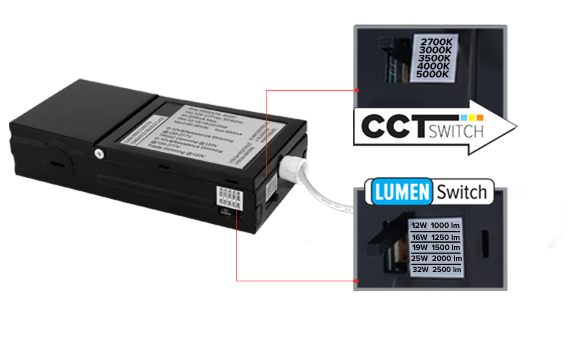

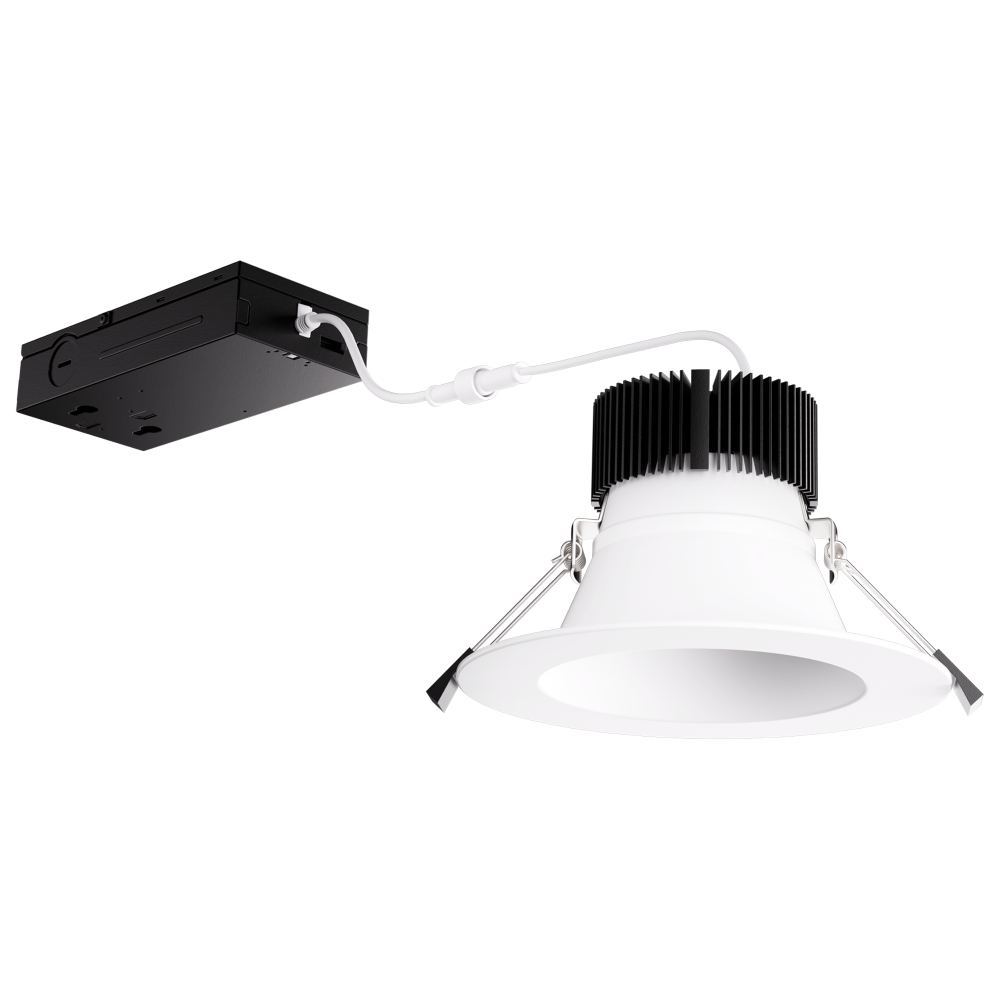

Our 6" LED Recessed Downlights are designed for quick and easy installation without a housing for both new construction and remodel applications, gives you the options you are looking for in one fixture. The CCT manual switch allows you to choose between 2700K, 3000K, 3500K, 4000K or 5000K. The Lumen Switch allows you to choose between 1000 (12W), 1250 (16W), 1500 (19W), 2000 (25W) or 2500 (32W) lm. IC-Rated for use with direct contact with insulation.
PRODUCT IMAGE
LINE ART
FINISHES / TYPES
All White

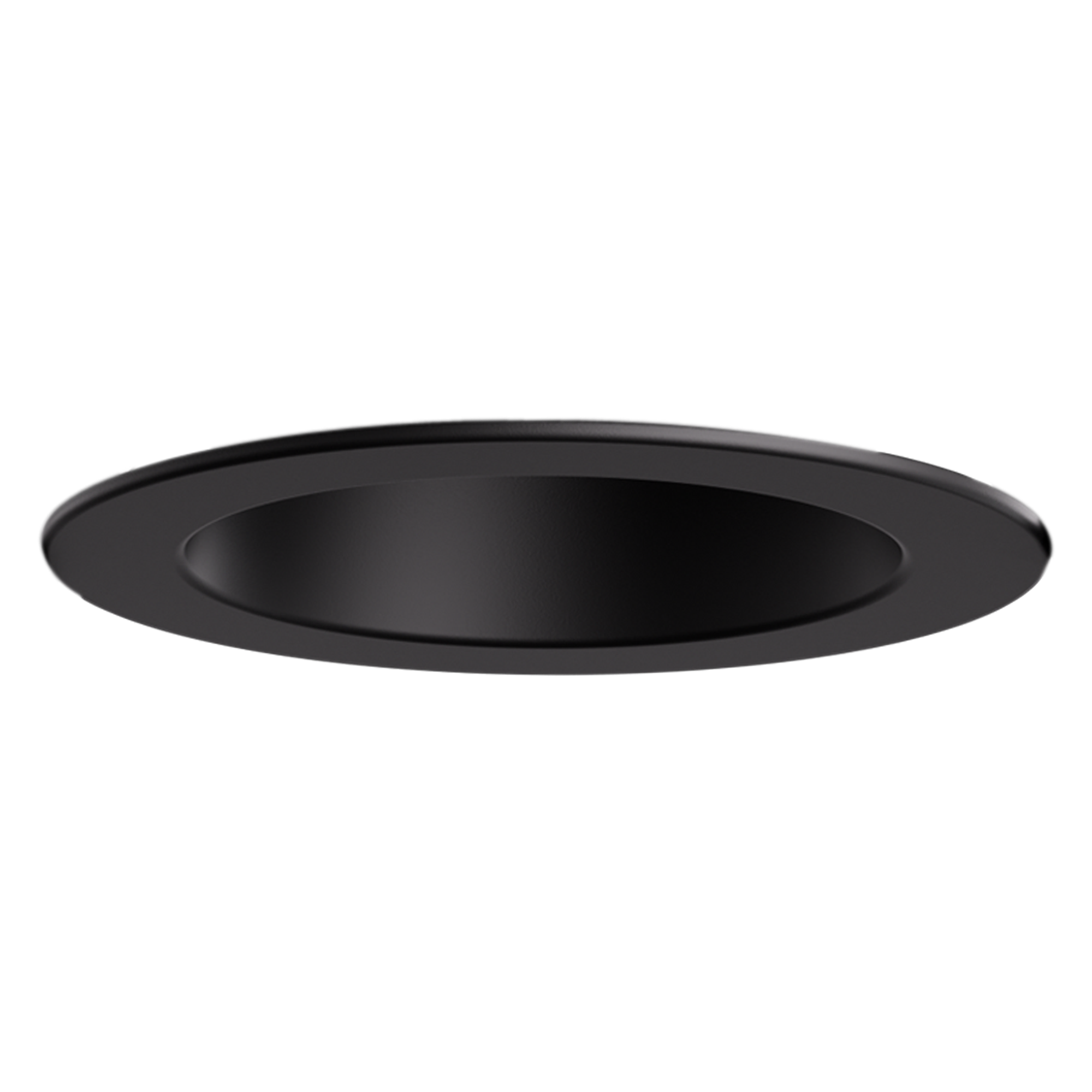

All Black

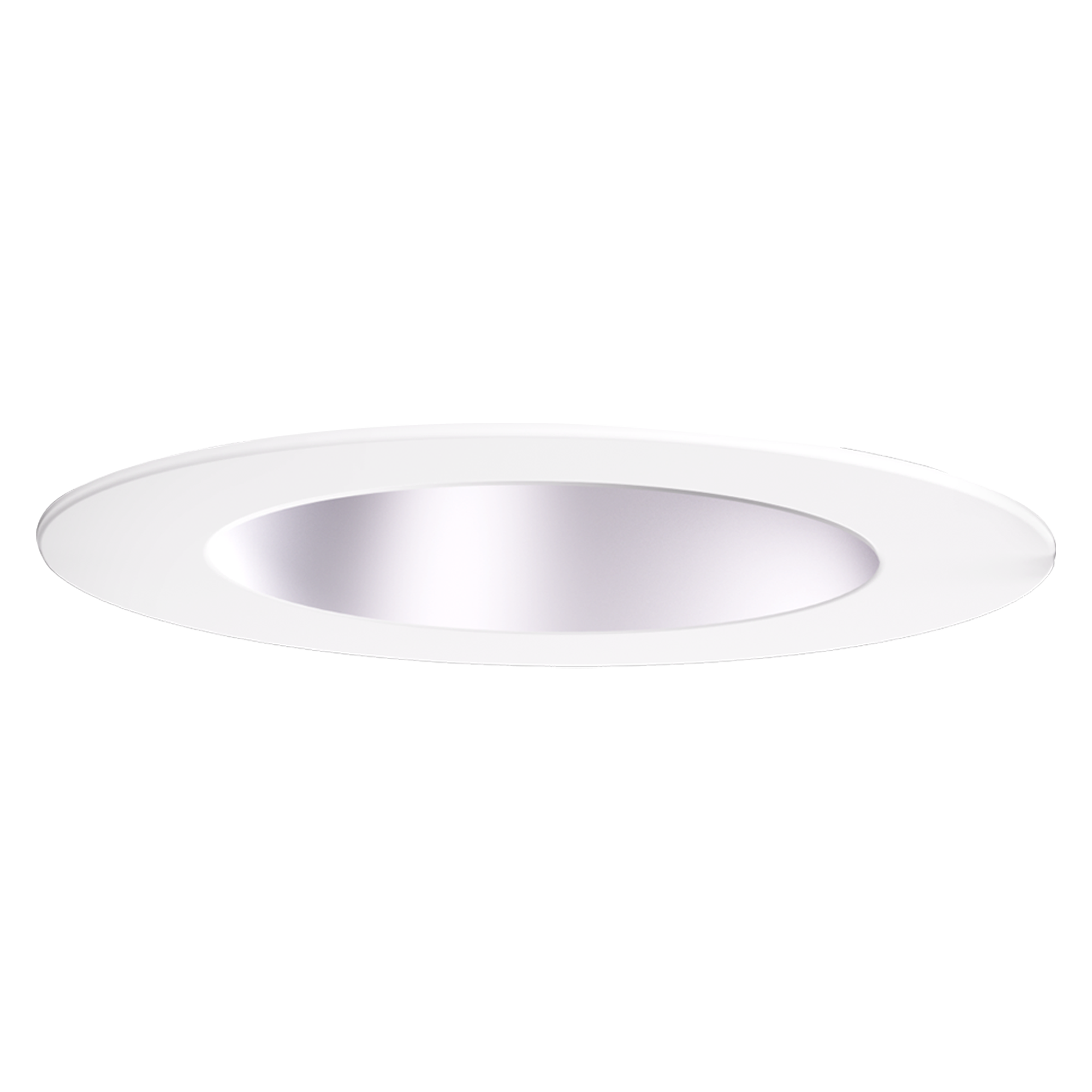

Haze with White Trim

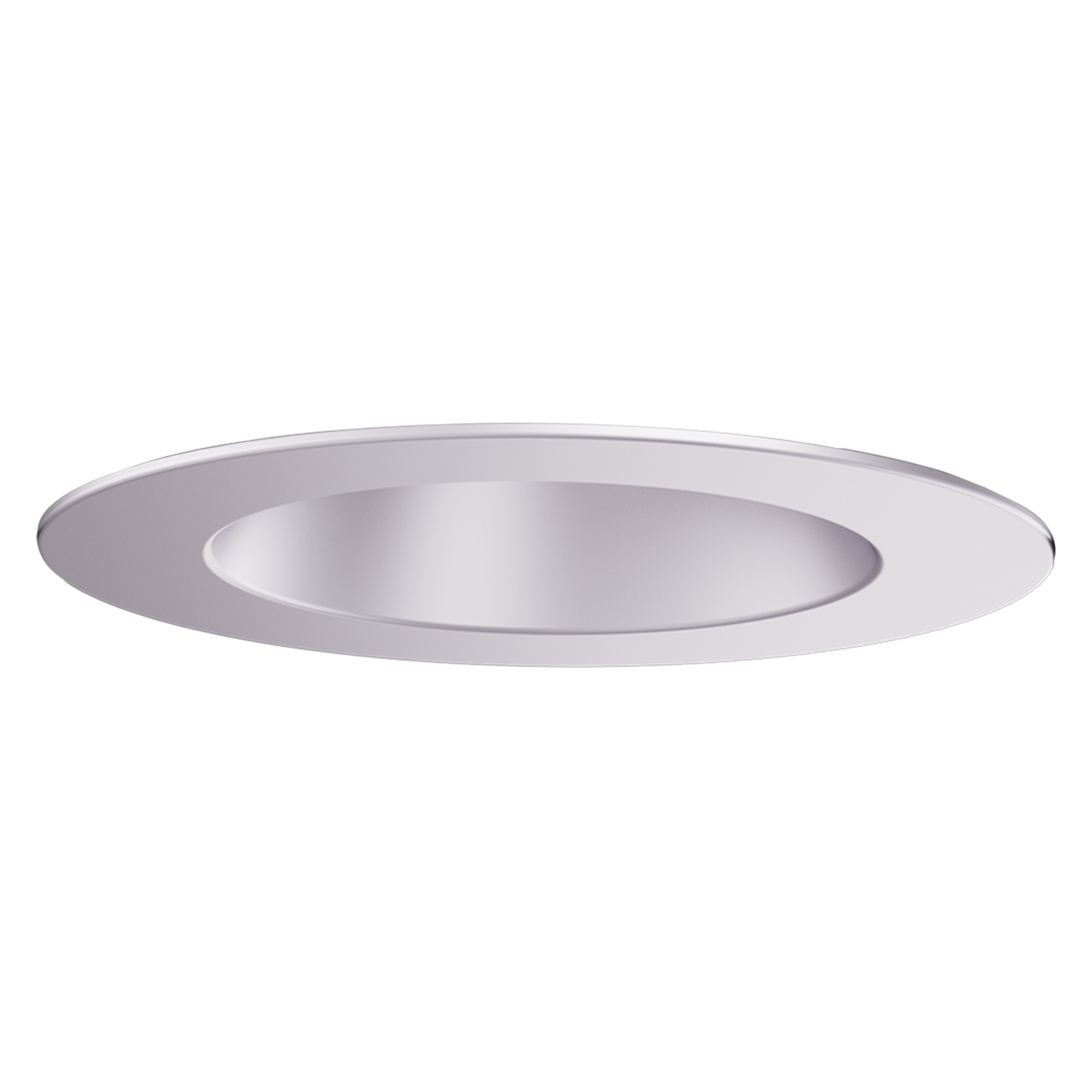

All Haze

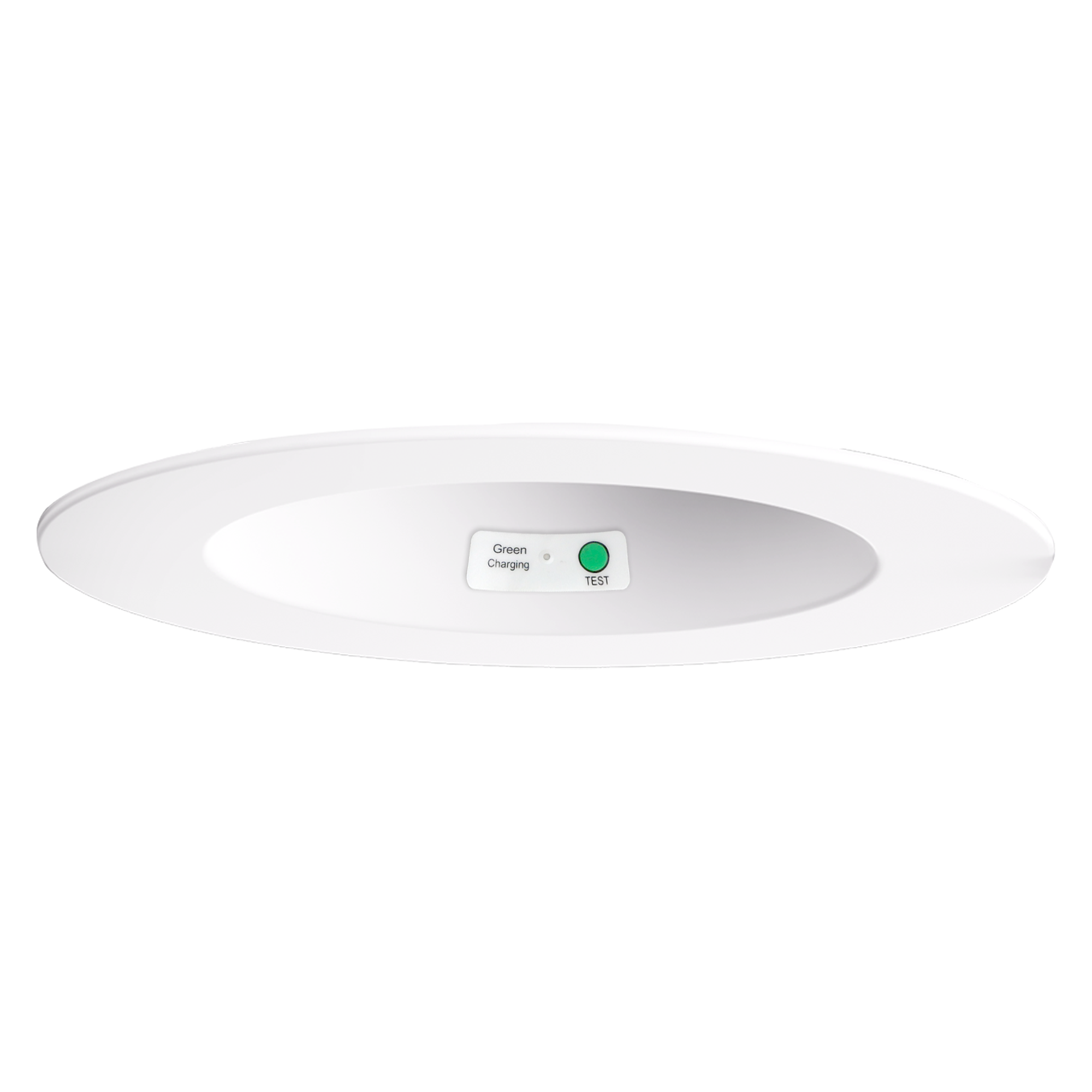

White Trim w Test Switch

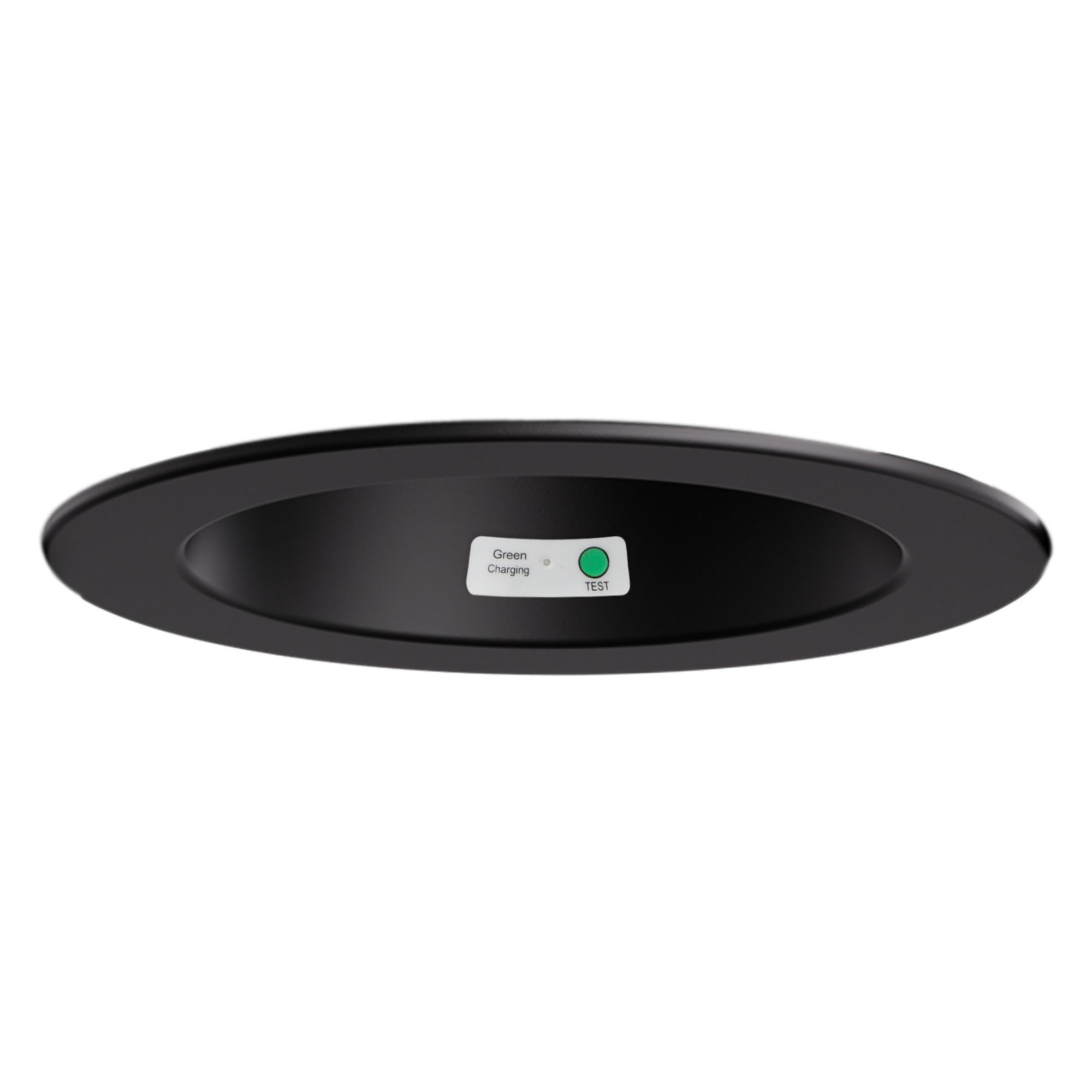

Black Trim w Test Switch

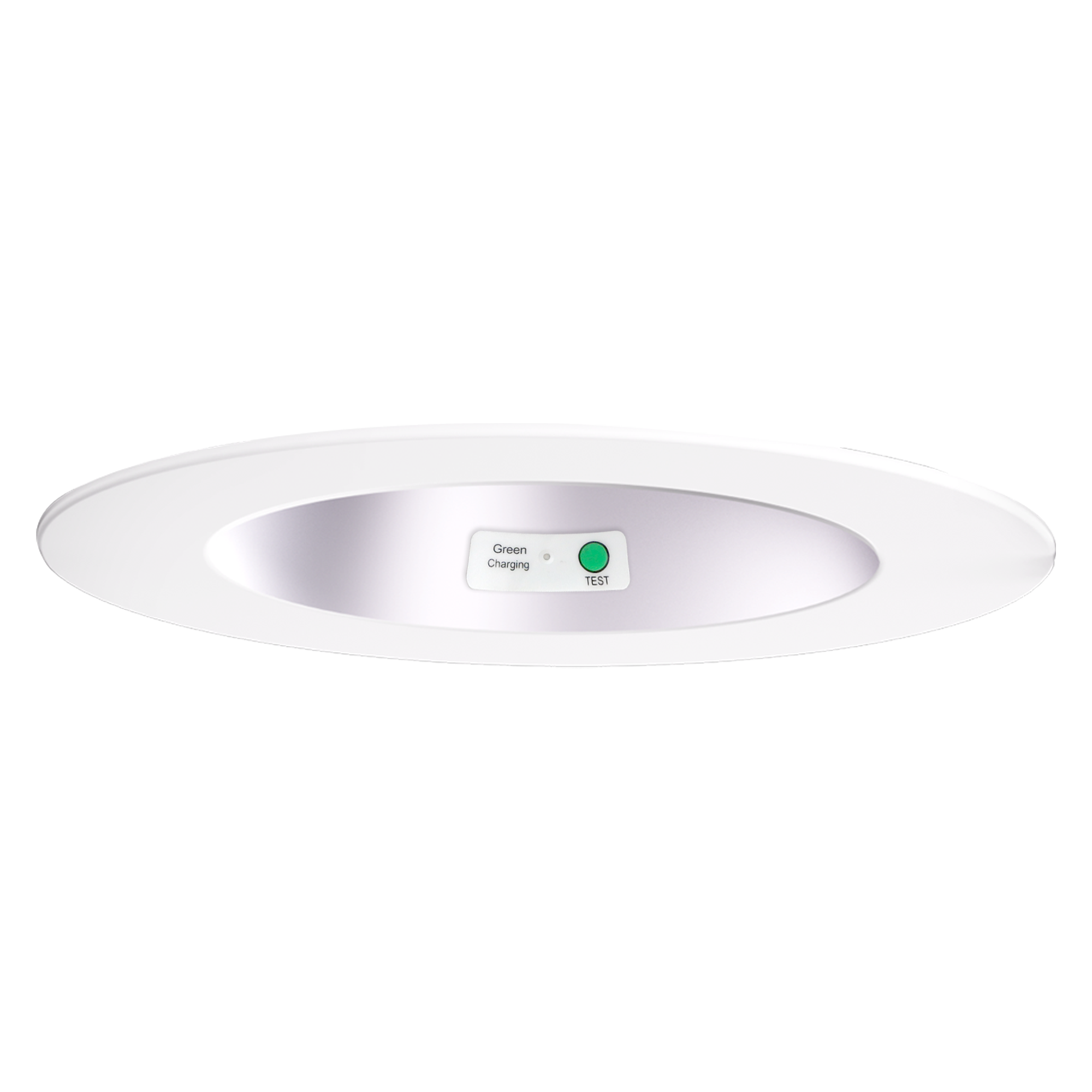

Haze White Trim w Test Switch

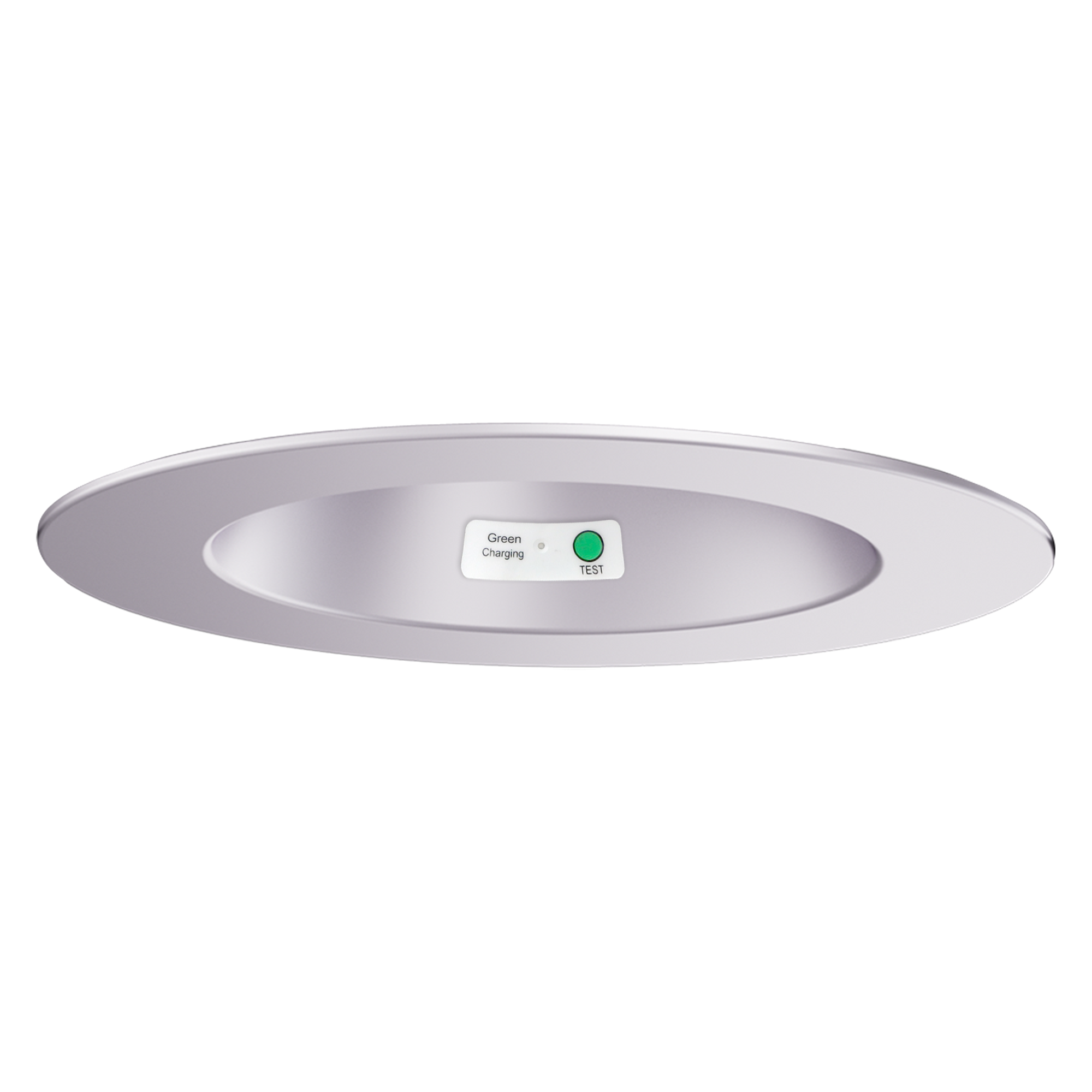

Haze Trim w Test Switch
Product Features
  • IC Airtight for use with direct contact to insulation
  • Eliminates the need for housing
  • Lumens (Wattage): 1000 lm (12W), 1250 lm (16W), 1500 lm (19W), 2000 lm (25W), 2500 lm (32W).
  • New Construction application requires mounting plate or frame
  • Remodel applications require no additional accessories
  • 90+ CRI for extremely accurate color rendering
  • Wet Location allows for use indoors or outdoors
  • Title 24 JA8-2019 Compliant
  • Includes driver and Jbox
  • Optional emergency battery backup available
Wattage
12W, 16W, 19W, 25WW - 12W, 16W, 19W, 25W, 32W
Lumens
1000 lm - 2500 lm
Voltage
120/277V
Color Temp.
2700K - 5000K
Dimmable
0-10V/Triac/ELV
Lamp Type
LED
CRI
90+
Wet Location
Listed

Resources & Downloads

Specifications
IES File
Catalog
Installation Instruction
Dimmer Compatibility

Product Number Builder

ITEM # SELECTED: CT5DW
[ ]
6" LED Round Reflector Insert with 5-CCT/Lumen
ERT685
Color Temp.
  • CT5D 2700K-5000K
Finish
  • W All White
  • BB All Black
  • H All Haze
  • HW Haze with White Ring
Optional
  • No Emergency Battery
  • -EM Up to 25W Em. Battery

Product SKU

Catalog Number Description Lamp type Wattage CCT Lumens Voltage Dimming Finish Spec
ERT685CT5DW LED 12W, 16W, 19W, 25W, 32 2700K, 3000K, 3500K, 4000K, 5000K 1000, 1250, 1500, 2000, 2500 lm 120/277V 0-10V/Triac/ELV All White
ERT685CT5DBB LED 12W, 16W, 19W, 25W, 32 2700K, 3000K, 3500K, 4000K, 5000K 1000, 1250, 1500, 2000, 2500 lm 120/277V 0-10V/Triac/ELV All Black
ERT685CT5DH LED 12W, 16W, 19W, 25W, 32 2700K, 3000K, 3500K, 4000K, 5000K 1000, 1250, 1500, 2000, 2500 lm 120/277V 0-10V/Triac/ELV All Haze
ERT685CT5DHW LED 12W, 16W, 19W, 25W, 32 2700K, 3000K, 3500K, 4000K, 5000K 1000, 1250, 1500, 2000, 2500 lm 120/277V 0-10V/Triac/ELV Haze with White Trim
ERT685CT5DW-EM Emergency Battery Backup LED 12W, 16W, 19W, 25W 2700K, 3000K, 3500K, 4000K, 5000K 1000, 1250, 1500, 2000 lm 120/277V 0-10V/Triac/ELV All White
ERT685CT5DBB-EM Emergency Battery Backup LED 12W, 16W, 19W, 25W 2700K, 3000K, 3500K, 4000K, 5000K 1000, 1250, 1500, 2000 lm 120/277V 0-10V/Triac/ELV All Black
ERT685CT5DH-EM Emergency Battery Backup LED 12W, 16W, 19W, 25W 2700K, 3000K, 3500K, 4000K, 5000K 1000, 1250, 1500, 2000 lm 120/277V 0-10V/Triac/ELV All Haze
ERT685CT5DHW-EM Emergency Battery Backup LED 12W, 16W, 19W, 25W 2700K, 3000K, 3500K, 4000K, 5000K 1000, 1250, 1500, 2000 lm 120/277V 0-10V/Triac/ELV Haze with White Trim
