2″ Koto Sylo™ Direct Mount

5W - 12.5W, 2400K - 5000K, Human Centric, Sunset, Tunable White, 350 lm - 1150 lm

Works with Koto™ Standard LED Module

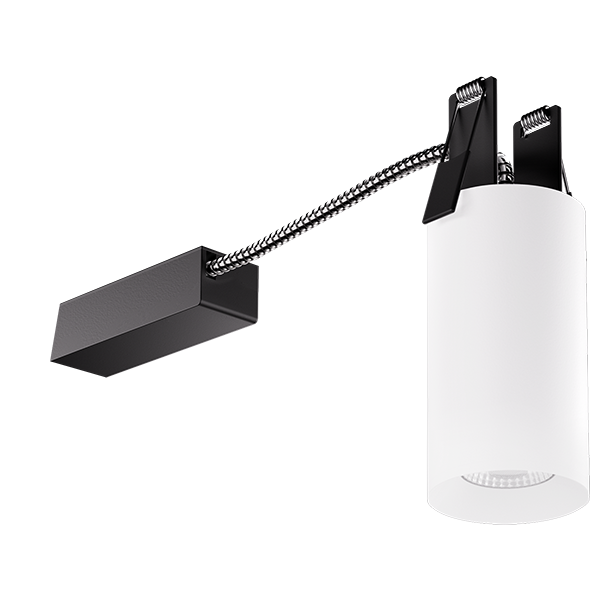

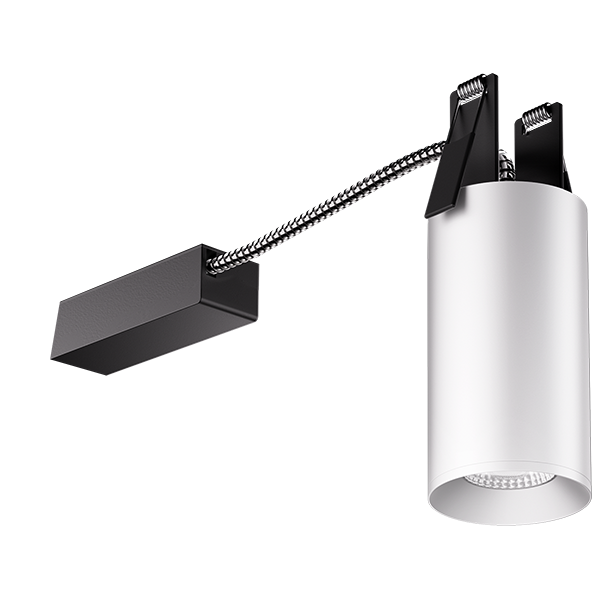

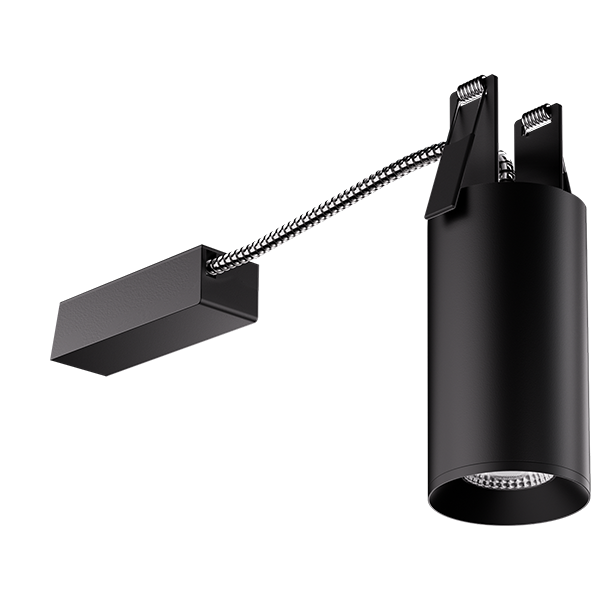

PRODUCT IMAGE
FINISHES / TYPES
White
Black
Silver

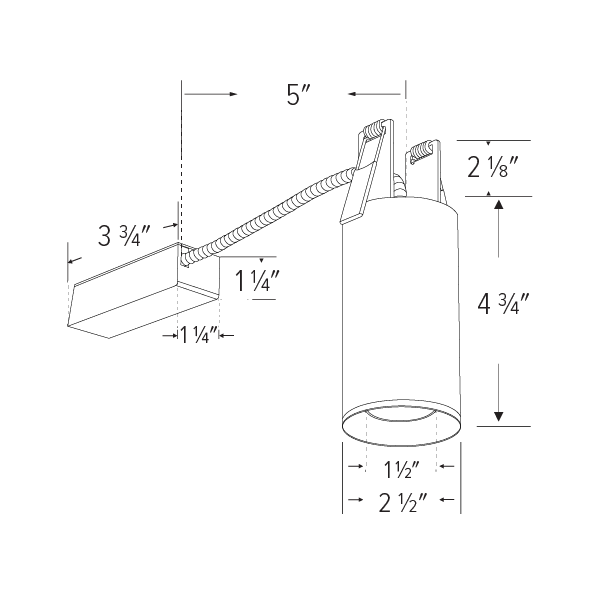

LINE ART
Dimensions
Product Features
  • Modern Die-Cast aluminum fixture for easy maintenance and upgrades
  • Includes Standard 38º lens, with 25º and 60º lenses. Optional: 18° & 90° lenses available.
  • Directly mounts into ceiling (Up to 1.5″ ceiling thickness)
  • Optional mounting plate (E1LF1)
  • Sunset option dims from 3000K to 1800K
  • Tunable White option dims from 1800K to 4000K
  • Human Centric option dims from 4000K to 2200K
  • Title 24 JA8-2019 & Energy Star Compliant
  • Life span of 50,000 hours L70
  • 120V Triac/ELV with standard module options (-03, -07, -08, -09, -10, -11, -13 series)
    120/277V, 0-10V/Triac/ELV with DX module (-10DX series)
Wattage
5W - 12.5W
Lumens
350 lm - 1150 lm
Voltage
120/277V or 120V
Color Temp.
2400K - 5000K, Human Centric, Sunset, Tunable White
Dimmable
Triac/ELV or DALI 2 Controlled
Lamp Type
LED
Beam Angle
38°
CRI
95
Damp Location
cUL Listed

Resources & Downloads

Specifications
Dimmer Compatibility
IES File
Installation Instruction
Flyer

Product Number Builder

ITEM # SELECTED: DW-0324
[ ]
Sylo™ Direct Mount
E25
Style
  • D Direct Mount
Finish
  • W All White
  • B All Black
  • S Silver
Koto™ Module
  • -03 350 lm (5W) 1, 2
  • -07 750 lm (10.5W) 1
  • -08 825 lm (10.5W) 1, 3
  • -08AL 850 lm (11.5W) 4
  • -09 950 lm (10.5W) 1
  • -10 1000 lm (12.5W) 1, 3
  • -11 1150 lm (12.5W) 1
  • -13 1350 lm (12.5W) 1
  • -10DX 1000 lm (11.8W) 5
Color Temperature
  • 24 2400K
  • 27 2700K
  • 30 3000K
  • 35 3500K
  • 40 4000K
  • SD Sunset (-09 and -11 only) 6, 7
  • HC Human Centric (-11 only) 8, 9, 10
  • CT5 2700K - 5000K 8, 11
  • 4T Tunable White 4000K-1800K 12
Beam Angle
  • 38° lens 13
  • -S 18° lens
  • -N 25° lens
  • -W 60° lens
  • -T 10° lens 8, 14
  • -E 90° lens 15
  • 1 Available as 120V, Triac/ELV only
  • 2 Available with 2400K, 2700K and 3000K Color Temperature Only
  • 3 Available with CT5 color temperature only
  • 4 DALI 2, 120/277V
  • 5 120/277V, 0-10V/Triac/ELV
  • 6 Available in -09, -11, & -13 lumen outputs
  • 7 Sunset, Dim to Warm technology, automatically transitions from 3000K to 1800K when dimmed
  • 8 Available as 120V, Triac/ELV only
  • 9 Available with 1150 lumen (-11) outputs only
  • 10 Human Centric, Dim to Warm technology, automatically transitions from 4000K to 2200K when dimmed
  • 11 Available with -08 and -10 lumen outputs only
  • 12 Available with -08AL output only, Dali 2 dimmable and Tunable White
  • 13 Includes 25° and 60° lens in the box
  • 14 Available with 350 and 750 lumen, 2700K and 3000K options only
  • 15 90° Frosted Reflector

Product SKU

Catalog Number Description Lamp type Wattage CCT Lumens Voltage Dimming Beam Angle Finish Spec
E25DW-0727 LED 10.5W 2700K 750 lm 120V Triac/ELV 38° All White
E25DS-1127 LED 12.5W 2700K 1150 lm 120V Triac/ELV 38° Silver
E25DS-11SD LED 12.5W Sunset Asset 1 1150 lm 120V Triac/ELV 38° Silver
E25DS-11HC LED 12.5W Human Centric Asset 1 1050 lm 120V Triac/ELV 38° Silver
E25DS-1140 LED 12.5W 4000K 1150 lm 120V Triac/ELV 38° Silver
E25DS-1135 LED 12.5W 3500K 1150 lm 120V Triac/ELV 38° Silver
E25DS-1130 LED 12.5W 3000K 1150 lm 120V Triac/ELV 38° Silver
E25DB-1127 LED 12.5W 2700K 1150 lm 120V Triac/ELV 38° All Black
E25DB-1140 LED 12.5W 4000K 1150 lm 120V Triac/ELV 38° All Black
E25DB-1135 LED 12.5W 3500K 1150 lm 120V Triac/ELV 38° All Black
E25DB-1130 LED 12.5W 3000K 1150 lm 120V Triac/ELV 38° All Black
E25DB-11SD LED 12.5W Sunset Asset 1 1150 lm 120V Triac/ELV 38° All Black
E25DB-11HC LED 12.5W Human Centric Asset 1 1050 lm 120V Triac/ELV 38° All Black
E25DW-1127 LED 12.5W 2700K 1150 lm 120V Triac/ELV 38° All White
E25DW-1140 LED 12.5W 4000K 1150 lm 120V Triac/ELV 38° All White
E25DW-1135 LED 12.5W 3500K 1150 lm 120V Triac/ELV 38° All White
E25DW-1130 LED 12.5W 3000K 1150 lm 120V Triac/ELV 38° All White
E25DW-11SD LED 12.5W Sunset Asset 1 1150 lm 120V Triac/ELV 38° All White
E25DW-11HC LED 12.5W Human Centric Asset 1 1050 lm 120V Triac/ELV 38° All White
E25DB-0727 LED 10.5W 2700K 750 lm 120V Triac/ELV 38° All Black
E25DW-0940 LED 10.5W 4000K 950 lm 120V Triac/ELV 38° All White
E25DW-0935 LED 10.5W 3500K 950 lm 120V Triac/ELV 38° All White
E25DW-0930 LED 10.5W 3000K 950 lm 120V Triac/ELV 38° All White
E25DW-0927 LED 10.5W 2700K 950 lm 120V Triac/ELV 38° All White
E25DW-09SD LED 10.5W Sunset Asset 1 950 lm 120V Triac/ELV 38° All White
E25DB-0740 LED 10.5W 4000K 750 lm 120V Triac/ELV 38° All Black
E25DB-0735 LED 10.5W 3500K 750 lm 120V Triac/ELV 38° All Black
E25DB-0730 LED 10.5W 3000K 750 lm 120V Triac/ELV 38° All Black
E25DS-0935 LED 10.5W 3500K 950 lm 120V Triac/ELV 38° Silver
E25DS-0930 LED 10.5W 3000K 950 lm 120V Triac/ELV 38° Silver
E25DS-0927 LED 10.5W 2700K 950 lm 120V Triac/ELV 38° Silver
E25DB-09SD LED 10.5W Sunset Asset 1 950 lm 120V Triac/ELV 38° All Black
E25DB-0940 LED 10.5W 4000K 950 lm 120V Triac/ELV 38° All Black
E25DB-0935 LED 10.5W 3500K 950 lm 120V Triac/ELV 38° All Black
E25DB-0930 LED 10.5W 3000K 950 lm 120V Triac/ELV 38° All Black
E25DB-0927 LED 10.5W 2700K 950 lm 120V Triac/ELV 38° All Black
E25DS-0740 LED 10.5W 4000K 750 lm 120V Triac/ELV 38° Silver
E25DS-0735 LED 10.5W 3500K 750 lm 120V Triac/ELV 38° Silver
E25DS-0730 LED 10.5W 3000K 750 lm 120V Triac/ELV 38° Silver
E25DS-0727 LED 10.5W 2700K 750 lm 120V Triac/ELV 38° Silver
E25DW-0740 LED 10.5W 4000K 750 lm 120V Triac/ELV 38° All White
E25DW-0735 LED 10.5W 3500K 750 lm 120V Triac/ELV 38° All White
E25DW-0730 LED 10.5W 3000K 750 lm 120V Triac/ELV 38° All White
E25DS-0940 LED 10.5W 4000K 950 lm 120V Triac/ELV 38° Silver
E25DW-08CT5 LED 10.5W 2700K, 3000K, 3500K, 4000K, 5000K 825 lm 120V Triac/ELV 38° All White
E25DB-08CT5 LED 10.5W 2700K, 3000K, 3500K, 4000K, 5000K 825 lm 120V Triac/ELV 38° All Black
E25DS-08CT5 LED 10.5W 2700K, 3000K, 3500K, 4000K, 5000K 825 lm 120V Triac/ELV 38° Silver
E25DW-10CT5 LED 12.5W 2700K, 3000K, 3500K, 4000K, 5000K 1000 lm 120V Triac/ELV 38° All White
E25DB-10CT5 LED 12.5W 2700K, 3000K, 3500K, 4000K, 5000K 1000 lm 120V Triac/ELV 38° All Black
E25DS-10CT5 LED 12.5W 2700K, 3000K, 3500K, 4000K, 5000K 1000 lm 120V Triac/ELV 38° Silver
E25DB-0327 LED 5W 2700K 350 lm 120V Triac/ELV 38° All Black
E25DW-0327 LED 5W 2700K 350 lm 120V Triac/ELV 38° All White
E25DS-0327 LED 5W 2700K 350 lm 120V Triac/ELV 38° Silver
E25DW-0330 LED 5W 3000K 350 lm 120V Triac/ELV 38° All White
E25DB-0330 LED 5W 3000K 350 lm 120V Triac/ELV 38° All Black
E25DS-0330 LED 5W 3000K 350 lm 120V Triac/ELV 38° Silver
E25DB-1124 LED 12.5W 2400K 1060 lm 120V Triac/ELV 38° All Black
E25DW-1124 LED 12.5W 2400K 1060 lm 120V Triac/ELV 38° All White
E25DS-1124 LED 12.5W 2400K 1060 lm 120V Triac/ELV 38° Silver
E25DB-0324 LED 5W 2400K 350 lm 120V Triac/ELV 38° All Black
E25DW-0324 LED 5W 2400K 350 lm 120V Triac/ELV 38° All White
E25DS-0324 LED 5W 2400K 350 lm 120V Triac/ELV 38° Silver
E25DB-0724 LED 10.5W 2400K 750 lm 120V Triac/ELV 38° All Black
E25DW-0724 LED 10.5W 2400K 750 lm 120V Triac/ELV 38° All White
E25DS-0724 LED 10.5W 2400K 750 lm 120V Triac/ELV 38° Silver
E25DB-0924 LED 10.5W 2400K 950 lm 120V Triac/ELV 38° All Black
E25DW-0924 LED 10.5W 2400K 950 lm 120V Triac/ELV 38° All White
E25DS-0924 LED 10.5W 2400K 950 lm 120V Triac/ELV 38° Silver
E25DW-08AL41TW Adjustable Surface Mount LED 11.5W Tunable White 880 lm 120/277V DALI 2 Controlled 38° All White
E25DB-08AL41TW Adjustable Surface Mount LED 11.5W Tunable White 880 lm 120/277V DALI 2 Controlled 38° All Black
E25DS-08AL41TW Adjustable Surface Mount LED 11.5W Tunable White 880 lm 120/277V DALI 2 Controlled 38° Silver
