0-10V, 120/277V 4" New Construction IC Airtight Housing for 2-Hr Fire Rated Ceilings
Maximum 2-Hour Fire Rated ceiling assembly can be maintained when installed according to the International Building Code, Section 714.
PRODUCT IMAGE
LINE ART
Product Features

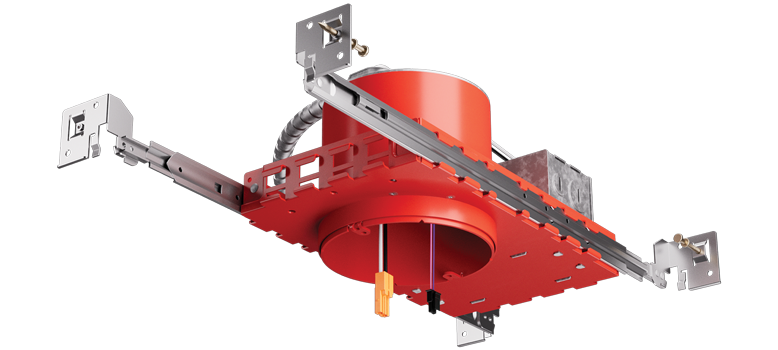

- New Construction IC Airtight Housing for 2-Hour Fire Rated ceilings
- Junction Box with hanger bars with quick-connect for easy fixture installation
- Round opening for easy hole cutting
- Maximum 2-Hour Fire Rated ceiling assembly can be maintained when installed according to the International Building Code, Section 714
- Covered by U.S. Patents
- For use with EL495 Series Only
- JA8 2022 E-Compliant
- ETL Listed
Voltage
120/277V
Dimmable
0-10V
Resources & Downloads
Product SKU
| Catalog Number | Description | Voltage | Dimming |
|---|---|---|---|
| EJB4ICDXA | 4" O.D. x 4 1/2" H | 120/277V | 0-10V |
| EJB4ICDXA-EM | Emergency Battery Backup | 120/277V | 0-10V |
